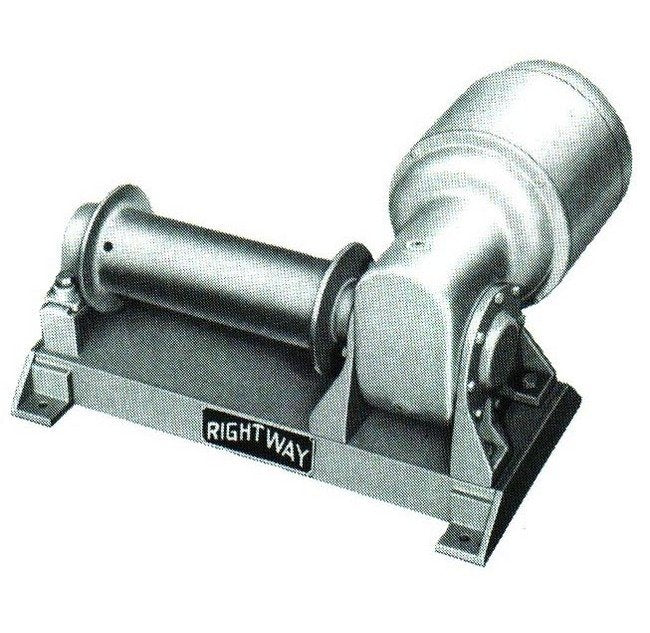

Model R Electric Winches - Heavy-Duty Industrial Hoisting Equipment
Model R Electric Winches - Heavy-Duty Industrial Hoisting Equipment
SKU:RIG-4f7d6d
Heavy-duty Model R Electric Winches for industrial lifting & pulling needs. Rugged design with 1000 lbs capacity & 2 HP motor.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Model R Electric Winches - Heavy-Duty Industrial Hoisting Equipment
$1,899.99
Quantity: 1
Claim Your Seller Account
Model R Electric Winches - Heavy-Duty Industrial Hoisting Equipment
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Model R Electric Winches are engineered for heavy-duty industrial applications, featuring a robust design with a 5 to 1 structural safety factor. With a running capacity of 1000 lbs and a powerful 2 HP motor, these winches provide reliable performance for lifting and pulling operations. The self-locking worm gear reduction, precision sealed roller bearings, and oil bath lubrication ensure smooth operation in all weather conditions. Optional equipment includes controls tailored to specific applications, grooved drums, and safety features like slack line limit switches and mechanical torque limiters for enhanced operational safety.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
180 ft.
Specifications Electrical Current
110/220 V-1-60
Specifications Full Drum
245 ft.
Specifications Line Speed
50 FPM
Specifications Motor
2 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
220 lbs.
Specifications Optional Equipment
Controls to suit application | Grooved drums | Electric Motor Brake (recommended for all hoisting applications) | Two or more wire ropes off the drum | Slack Line Limit Switch | Travel Limit Switch | Mechanical Torque Limiter - automatic reset
Specifications Running Capacity Lbs
1000
Specifications Winch Height
17 inches
Specifications Winch Length
24 inches
Specifications Winch Width
26 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
1/4 inches
Standard Features 0
Mounting can be mounted in any position ceiling, wall or floor Self-locking worm gear reduction oilbath lubrication All weather use is ideal for model R and RA winches Rugged quality precision sealed roller bearings throughout, made to run all day every day, minimum 5 to 1 structural safety factor
