Model TSS Motorized Crane - 2 Ton Capacity
Model TSS Motorized Crane - 2 Ton Capacity
SKU:REL-0b7477
Efficient & Reliable 2-Ton Model TSS Motorized Crane for Indoor & Outdoor Use
Regular price
$7,499.99
Regular price
Sale price
$7,499.99
Unit price
per
Initiate Order
Model TSS Motorized Crane - 2 Ton Capacity
$7,499.99
Quantity: 1
Claim Your Seller Account
Model TSS Motorized Crane - 2 Ton Capacity
$7,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

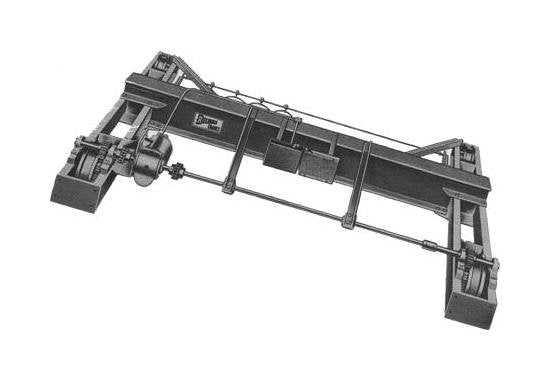

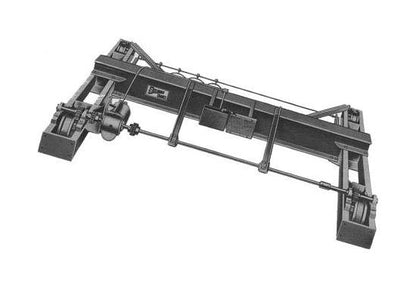

The Top Running Single Girder Motor Driven Crane Model TSS is designed for extreme conditions, suitable for both indoor and outdoor use. With a reliable 2-ton capacity, S10 x 25.4 girder size, and 15-foot span, this crane optimizes efficiency and safety. Featuring top-running, single girder design, it offers superior stability with channel capped beams for added support. This crane is equipped for versatility with hand-geared, motor-driven, and push-type operations, ensuring seamless performance in any environment.
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
2 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
1695 lbs.

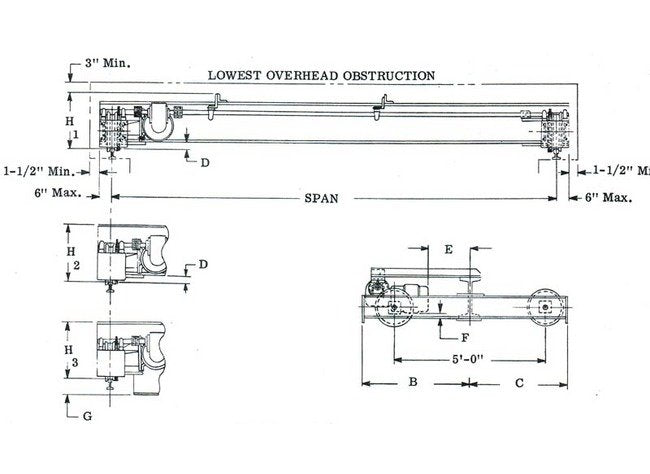

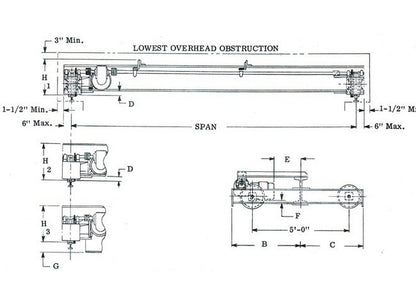

Specifications Dimension B
3'-2"
Specifications Dimension C
3'-0"
Specifications Dimension D
3/4 inches
Specifications Dimension E
1'-2"
Specifications Dimension F
2 inches
Specifications Dimension G
2 inches
Specifications Dimension H1
14 inches
Specifications Dimension H2
13 inches
Specifications Electric
&nbps;
Specifications Girder Size
S10 x 25.4
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Model
Model TSS Motorized Crane
Specifications Runway Rail
40# A.S.C.E.
Specifications Span
15'-0"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Diameter
8 inches
Specifications Wheel Load Per Wheel
2750 lbs.
