Model TSS Motorized Crane - 3 Ton Capacity
Model TSS Motorized Crane - 3 Ton Capacity
SKU:REL-c710aa
Enhanced efficiency in extreme conditions - Model TSS Motorized Crane, 3-ton capacity, top-running single girder design, compliant with industry standards.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
Model TSS Motorized Crane - 3 Ton Capacity
$7,999.99
Quantity: 1
Claim Your Seller Account
Model TSS Motorized Crane - 3 Ton Capacity
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

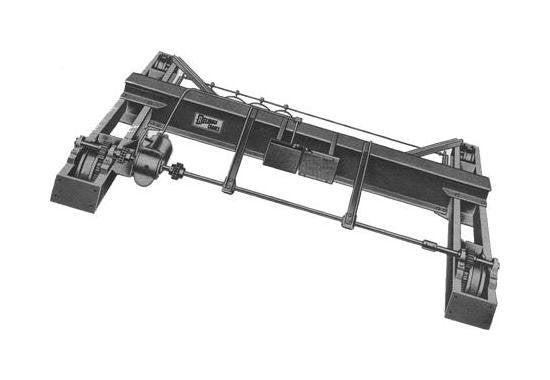

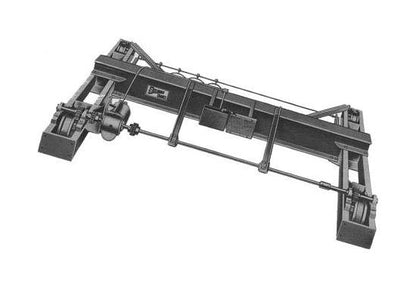

Experience optimal efficiency and reliability with our Model TSS Motorized Crane, designed for extreme conditions in indoor or outdoor settings. Featuring a 3-ton capacity, top-running single girder construction, and S15 x 42.9 girder size, this crane ensures seamless operation. With dimensions suitable for varied applications and compliance with industry standards, this crane is a top choice for demanding tasks.
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
3 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
2270 lbs.

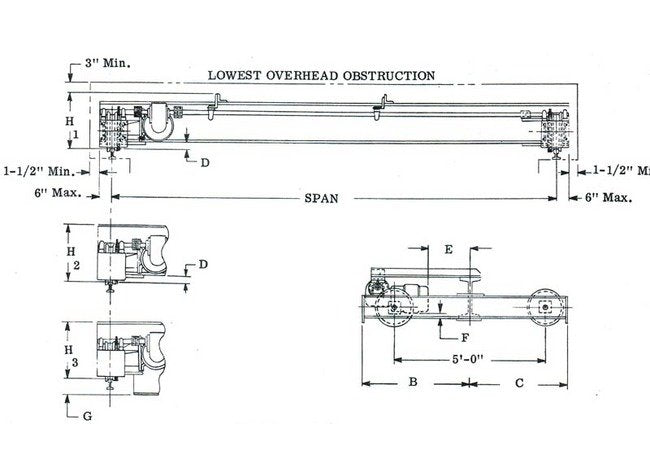

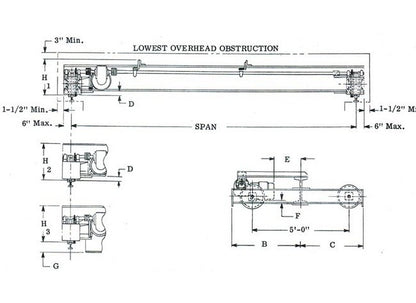

Specifications Dimension B
3'-2"
Specifications Dimension C
3'-0"
Specifications Dimension D
3/4 inches
Specifications Dimension E
1'-2"
Specifications Dimension F
2 inches
Specifications Dimension G
2 inches
Specifications Dimension H1
19 inches
Specifications Dimension H2
16 inches
Specifications Dimension H3
13 inches
Specifications Electric
&nbps;
Specifications Girder Size
S15 x 42.9
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Model
Model TSS Motorized Crane
Specifications Runway Rail
40# A.S.C.E.
Specifications Span
20'-0"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Diameter
8 inches
Specifications Wheel Load Per Wheel
3990 lbs.
