Model TSS Motorized Crane - Top Running Single Girder
Model TSS Motorized Crane - Top Running Single Girder
SKU:REL-faaf93
Reliable Model TSS Motorized Crane for heavy lifting in extreme conditions. 1-ton capacity, 17'-6" span, motor-driven, and channel-capped beams for stability.
Regular price
$6,999.99
Regular price
Sale price
$6,999.99
Unit price
per
Initiate Order
Model TSS Motorized Crane - Top Running Single Girder
$6,999.99
Quantity: 1
Claim Your Seller Account
Model TSS Motorized Crane - Top Running Single Girder
$6,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Model TSS Motorized Crane is a top-of-the-line solution for heavy lifting in extreme conditions. With a capacity of 1 ton and a span of 17'-6", this crane is designed for reliability and performance. Featuring a sturdy S10 x 25.4 girder size and dimensions tailored for optimal function, it excels in both indoor and outdoor applications. Equipped with motor-driven capabilities and built for stability with channel-capped beams, this crane ensures efficient operations in various settings. Additionally, the bare copper wire bridge conductors enhance safety and performance, meeting the highest industry standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
1 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
1765 lbs.

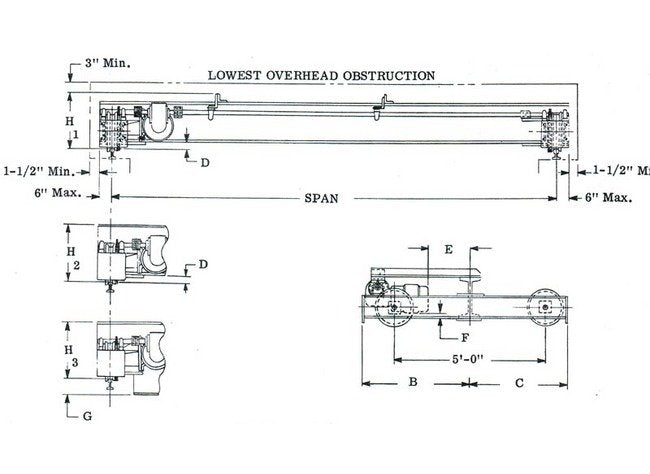

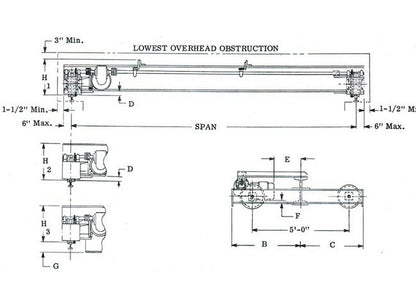

Specifications Dimension B
3'-2"
Specifications Dimension C
3'-0"
Specifications Dimension D
3/4 inches
Specifications Dimension E
1'-2"
Specifications Dimension F
2 inches
Specifications Dimension H1
14 inches
Specifications Dimension H2
13 inches
Specifications Electric
&nbps;
Specifications Girder Size
S10 x 25.4
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Model
Model TSS Motorized Crane
Specifications Runway Rail
40# A.S.C.E.
Specifications Span
17'-6"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Diameter
8 inches
Specifications Wheel Load Per Wheel
1640 lbs.
