Model TSS Single Girder Motor Driven Crane
Model TSS Single Girder Motor Driven Crane
SKU:REL-00d1d5
Model TSS Single Girder Motor Driven Crane - Reliable overhead crane for extreme conditions, 10-ton capacity, top running design.
Regular price
$15,999.99
Regular price
Sale price
$15,999.99
Unit price
per
Initiate Order
Model TSS Single Girder Motor Driven Crane
$15,999.99
Quantity: 1
Claim Your Seller Account
Model TSS Single Girder Motor Driven Crane
$15,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

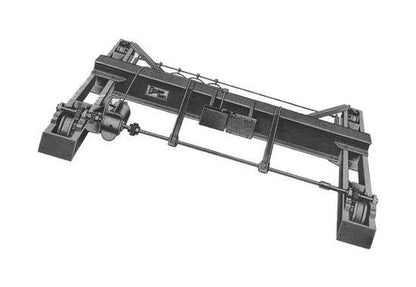

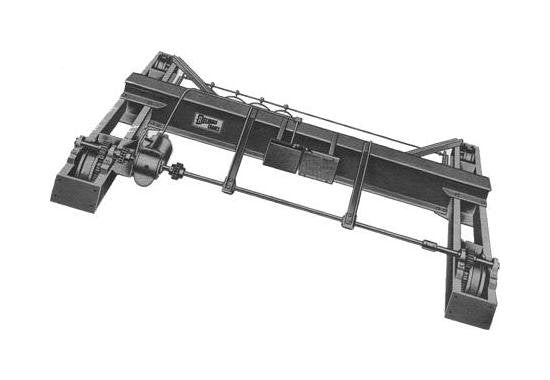

The Model TSS Single Girder Motor Driven Crane is a top-running overhead crane designed for extreme conditions, suitable for both indoor and outdoor use. With a capacity of 10 tons and a span of 30 feet, this crane provides reliable lifting solutions. Featuring a sturdy S20 x 65.4C girder size for added stability, it comes equipped with runway collectors, ensuring efficient operation. The motorized system, paired with superior construction, makes this crane ideal for demanding applications. Its compliance with industry standards guarantees safety and performance in all settings.
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
10 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
4815 lbs.

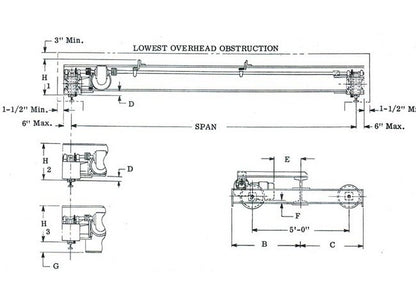

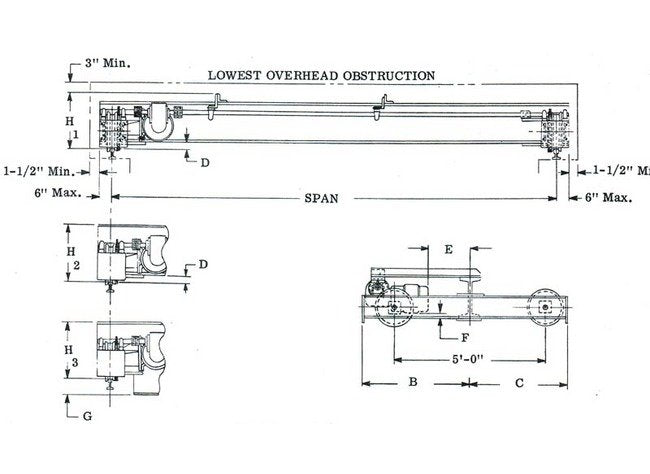

Specifications Dimension B
3'-6"
Specifications Dimension C
3'-2"
Specifications Dimension D
1 inches
Specifications Dimension E
1'-2"
Specifications Dimension F
6 inches
Specifications Dimension G
2 inches
Specifications Dimension H1
24 inches
Specifications Dimension H2
22 inches
Specifications Dimension H3
18 inches
Specifications Electric
&nbps;
Specifications Girder Size
S20 x 65.4C
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Model
Model TSS Motorized Crane
Specifications Runway Rail
40# A.S.C.E.
Specifications Span
30'-0"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Diameter
12 inches
Specifications Wheel Load Per Wheel
12460 lbs.
