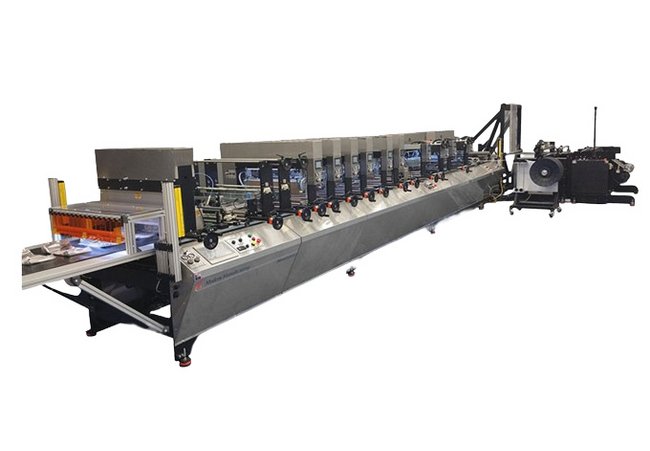

Momentum-610SUP Series Stand-Up Pouch Makers
Momentum-610SUP Series Stand-Up Pouch Makers
SKU:MOM-0efbe9
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Momentum-610SUP Series Stand-Up Pouch Makers
$49.99
Quantity: 1
Claim Your Seller Account
Momentum-610SUP Series Stand-Up Pouch Makers
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The world's most advanced pouch making systemPrecision, accuracy and repeatability never seen before on a pouch making line
Product Specifications
Additional Information
Modern Manufacturing Services has taken the next steps in the evolution of the pouch making process— the Momentum Series Stand-Up Pouch System. Incorporated into this new design include advancements that enable: improved productivity, reduced downtime (tool less changeovers) and extremely high pouch quality, all while reducing maintenance costs.This new system is ideal for applications in the short-run digital print market, as well as, medium to long run applications typically found in pouch converting lines.The standard features on the Momentum series, include:Independent servo draw systemsServo knife with independent servo sealers/coolersBuilt-in flange zipper systemFour zone web-tension controlNip-driven unwind systemBuilt-in indexing conveyorTwo independent punch carriages (one with tear notch and one with hanger hole)Auto-tune temperature controlsHeater and thermocouple break alarmsEye averaging function (smoothing function)Built-in 2nd cut featureWhile there are certainly significant hardware enhancements in the Momentum series, the most dramatic enhancements are with the Inteliseal sealing system. Inteliseal is a servo actuated system with built-in functional settings, which allows the operator to easily dial in the appropriate sealing settings for a particular film.All seal heads are independently controlled from the control panel on each head or at the HMI (Human Machine Interface). This unique capability allows an operator to set each seal head so that cycle distance, seal compression distance and seal force vary based on the demands of the film being converted.The Inteliseal system enables the Momentum series to run films that most pouch making systems have great difficulty with or require the system be dramatically slowed down to produce acceptable pouch quality. Given all this, what does it mean to your converting business:Industry best pouch qualityAbility to run difficult films, including COEX and recyclableWorld class application flexibilityEasy repeatability with all settings easily stored for repeat usageIn summary, the Inteliseal system enables the Momentum to provide more flexibility and higher seal quality than any other system on the market today.
Equipment Options
Optional Punch Shapes and SizesTear notch, hanger hole, sombrero, corner round, handle hole.Digital Readouts for Carriage PositioningProvides a more precise location positioning with absolute or incremental settings. Inch and metric conversion provided.Closed Loop Chiller SystemFor maintained chilled water supply.Coreless Trim RewinderEasy change spools, traverse wound trim with small foot print.Two Tier Conveyor with StackingAllowing for cleaner stacking and product handling.Vacuum Punch Slug RemovalThis option provides a clean vacuum removal system for punch slugs.Web Tracking GuideGuides film at the front of the machine, allowing better accuracy for punches, web slitting and other pouch features. Eliminates side wander.
Features
Low scrap ratesFast change-over timesExceptional pouch qualityAble to run the toughest films, including recyclableExtremely high productivity and uptime rates
Note
Skirt seals can only be achieved with added toolingMade in The USA
Technical Specs Alternative Current Ac Voltage
208 V | 220 V
Technical Specs Brands
Intelliseal
Technical Specs Current
125 A
Technical Specs Maximum Gusset Size
4 in | 102 mm
Technical Specs Maximum Lay Flat Web Width
52 in | 1321 mm
Technical Specs Maximum Open Gusset Size
8 in
Technical Specs Maximum Pouch Height
24 in | 610 mm
Technical Specs Maximum Pouch Width Without Skip Feed
12 in | 305 mm
Technical Specs Maximum Roll Diameter
24 in | 610 mm
Technical Specs Mechanical Speed
250 cycles/min
Technical Specs Minimummaximum Pouch Width With Skip Feed
300 in
Technical Specs Minimum Gusset Size
0.5 in | 13 mm
Technical Specs Minimum Open Gusset Size
1.0 in
Technical Specs Minimum Pouch Width Without Skip Feed
3 in | 76 mm
Technical Specs Servo Actuated Machine Air Pressure At 90 Pounds
15 ft³/min
Technical Specs Standard Core Size
3 in | 76 mm
Technical Specs Stand Up Pouch Making Machine
24 in | 610 mm
Technical Specs Warranty
1 year
Technical Specs Water Flow Rate At 50 To 55 Degree Fahrenheit F
12 gpm
