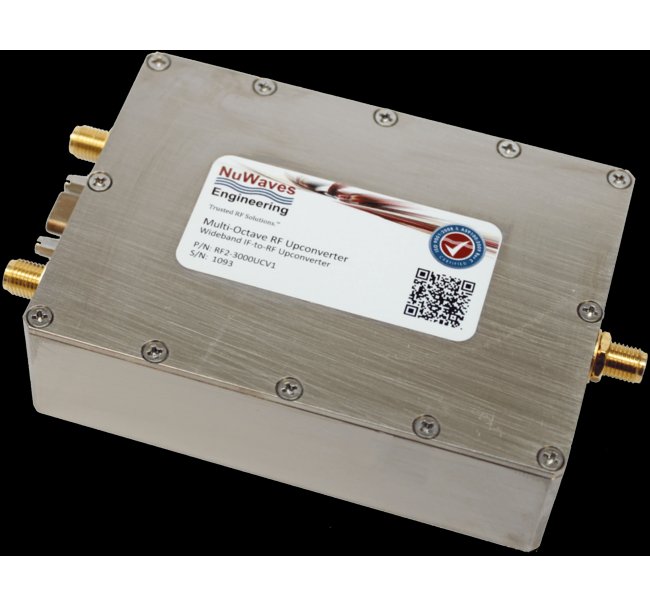

MORF™ Multi-Octave RF Upconverters
MORF™ Multi-Octave RF Upconverters
SKU:MOR-94002b
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
MORF™ Multi-Octave RF Upconverters
$49.99
Quantity: 1
Claim Your Seller Account
MORF™ Multi-Octave RF Upconverters
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Accepting an intermediate frequency (IF) input signal in the range of 2 MHz to 70 MHz, MORF provides an RF output signal between 2 MHz and 3000 MHz with 5 kHz tuning resolution. Additional features include 50 dB of attenuation control over the RF amplitude and two IF bandwidth options of 4 MHz and 35 MHz. The MORF is configurable via any serial terminal program or an optional graphical user interface (GUI). Please reach out to our business development team to request a data sheet. NuWaves’ Multi-Octave RF Upconverter, or MORF™, is a small and versatile RF upconverter module featuring programmable IF and RF frequencies, variable attenuation control, and user-selectable IF bandwidth filtering. MORF applications include RF communications systems including software defined radios (SDR), telemetry, electronic warfare systems including SIGINT, ELINT, COMINT, etc. Pair MORF with NuWaves’ ConvertaWave2 RF Downconverter for a complete transmit and receive RF front-end that covers 200 to 2500 MHz with exceptional RF performance. A development kit that includes the GUI software for the PC Control Panel and a customized interface cable assembly is available as an ordering option. Demo units are available to qualified customers.
Product Specifications
Specifications Ambient Operating Temperature
-15 to +50 ºC
Specifications Export Classification
ITAR Controlled
Specifications If Bandwidths
4.0 MHz | 35.0 MHz
Specifications If Input Frequency Range
2 to 70 MHz
Specifications If Output
2 - 70 MHz
Specifications If Rejection Typ
30 dB
Specifications Maximum Frequency
3000 MHz
Specifications Minimum Frequency
200 MHz
Specifications Minimum If Rejection
30 dB
Specifications Minimum Supply Voltage Vdc
6
Specifications Rf Output Frequency Range
2 MHz | 3000 MHz
Specifications Size Lx W X H
3.50 x 2.50 x 1.00 Inch
Specifications Tuning Resolution
5 kHz
