Motor Driven Single Girder Cranes - 3 Ton Capacity
Motor Driven Single Girder Cranes - 3 Ton Capacity
SKU:REL-b6d118
Boost efficiency with our 3-ton Motor Driven Single Girder Crane, ideal for extreme conditions in indoor and outdoor settings.
Regular price
$6,999.99
Regular price
Sale price
$6,999.99
Unit price
per
Initiate Order
Motor Driven Single Girder Cranes - 3 Ton Capacity
$6,999.99
Quantity: 1
Claim Your Seller Account
Motor Driven Single Girder Cranes - 3 Ton Capacity
$6,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

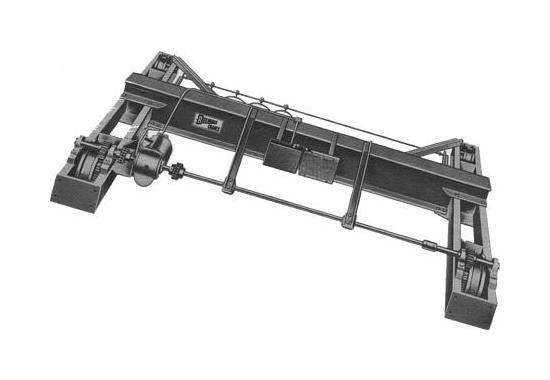

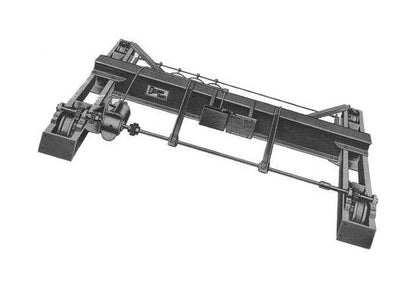

Enhance your material handling efficiency with our Model TSS Top Running Single Girder Crane. With a 3-ton capacity and a sturdy S12 x 31.8 girder size, this crane is designed for extreme conditions, offering reliable performance in indoor and outdoor settings. The crane features a compact design and durable construction, making it ideal for various heavy lifting applications. Equipped with a motor-driven system and safety features, it ensures smooth and secure operations.
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
3 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
1915 lbs.

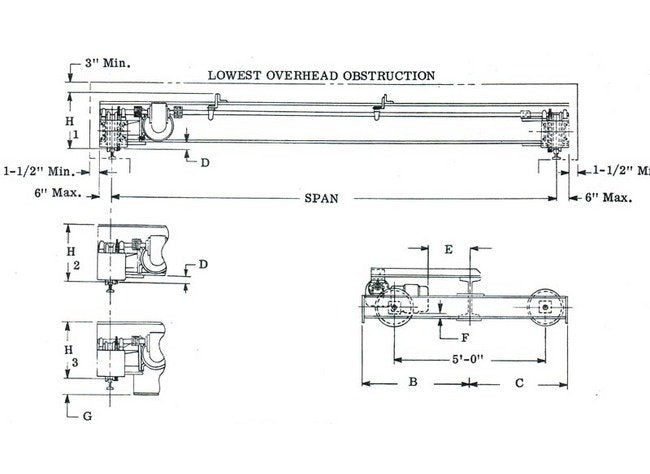

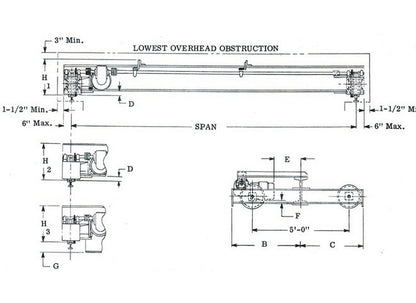

Specifications Dimension B
3'-2"
Specifications Dimension C
3'-0"
Specifications Dimension D
3/4 inches
Specifications Dimension E
1'-2"
Specifications Dimension F
2 inches
Specifications Dimension H1
16 inches
Specifications Dimension H2
13 inches
Specifications Electric
&nbps;
Specifications Girder Size
S12 x 31.8
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Model
Model TSS Motorized Crane
Specifications Runway Rail
40# A.S.C.E.
Specifications Span
17'-6"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Diameter
8 inches
Specifications Wheel Load Per Wheel
3900 lbs.
