Motor Driven Single Girder Top Running Crane - 2 Ton Capacity
Motor Driven Single Girder Top Running Crane - 2 Ton Capacity
SKU:REL-d70745
Heavy-duty 2-ton capacity motor-driven crane for extreme conditions, indoor & outdoor use. Top running, single girder design.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
Motor Driven Single Girder Top Running Crane - 2 Ton Capacity
$7,999.99
Quantity: 1
Claim Your Seller Account
Motor Driven Single Girder Top Running Crane - 2 Ton Capacity
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

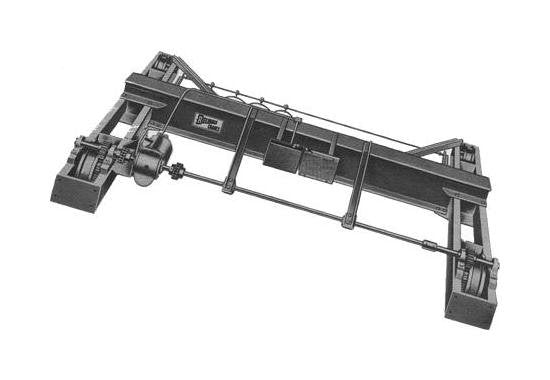

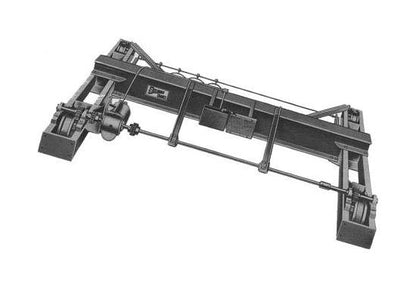

The Model TSS Motorized Crane is designed for heavy-duty operations in extreme conditions, suitable for both indoor and outdoor use. With a capacity of 2 tons and a span of 27'-6", this crane features a sturdy S18 x 54.7 girder size for reliable performance. It comes equipped with a variety of dimensions and specifications including top running, single girder design, and motor-driven operation, making it a versatile choice for various lifting applications.
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
2 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
3025 lbs.

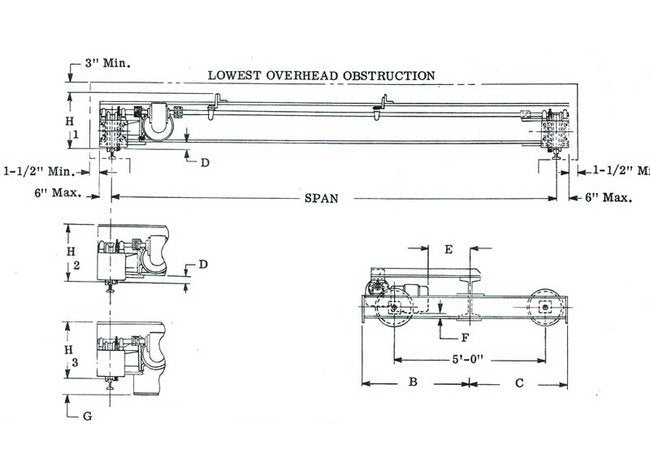

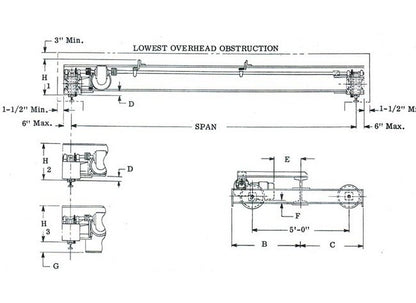

Specifications Dimension B
3'-2"
Specifications Dimension C
3'-0"
Specifications Dimension D
3/4 inches
Specifications Dimension E
1'-2"
Specifications Dimension F
2 inches
Specifications Dimension G
2 inches
Specifications Dimension H1
22 inches
Specifications Dimension H2
19 inches
Specifications Dimension H3
13 inches
Specifications Electric
&nbps;
Specifications Girder Size
S18 x 54.7
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Model
Model TSS Motorized Crane
Specifications Runway Rail
40# A.S.C.E.
Specifications Span
27'-6"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Diameter
8 inches
Specifications Wheel Load Per Wheel
3080 lbs.
