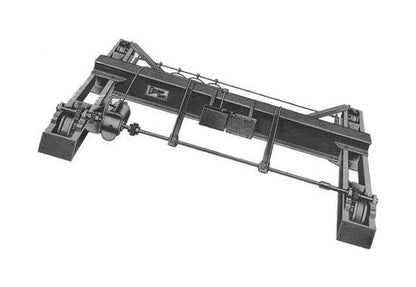

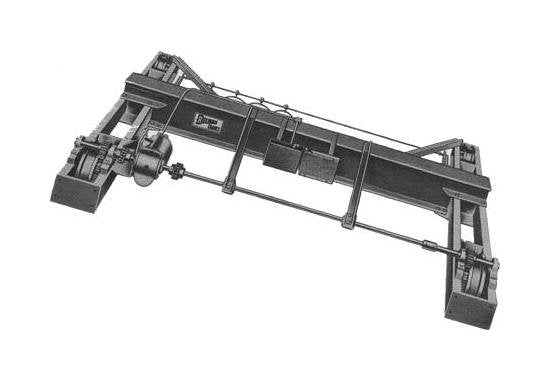

Motor Driven Top Running Single Girder Cranes 2 Tons
Motor Driven Top Running Single Girder Cranes 2 Tons
SKU:REL-8b8dba
Reliable 2-ton Motor Driven Single Girder Cranes for indoor/outdoor use with exceptional stability and 2930 lbs wheel load capacity.
Regular price
$8,499.99
Regular price
Sale price
$8,499.99
Unit price
per
Initiate Order
Motor Driven Top Running Single Girder Cranes 2 Tons
$8,499.99
Quantity: 1
Claim Your Seller Account
Motor Driven Top Running Single Girder Cranes 2 Tons
$8,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Motor Driven Top Running Single Girder Cranes with a Model TSS design are ideal for extreme conditions and indoor/outdoor use. Featuring a reliable 2-ton capacity and S15 x 42.9 girder size, these cranes ensure precision lifting with a span of 22'-6". With dimensions H1: 19 inches, H2: 16 inches, and H3: 13 inches, they provide stability and durability. The cranes offer versatile operations with options for hand geared, motor-driven, and push-type controls. Wheel load capacity of 2930 lbs per wheel and sturdy construction with a weight of 2405 lbs make them suitable for heavy-duty applications.
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
2 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
2405 lbs.

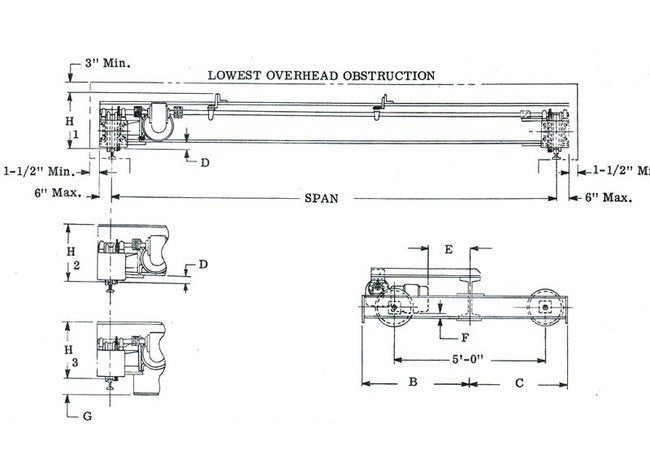

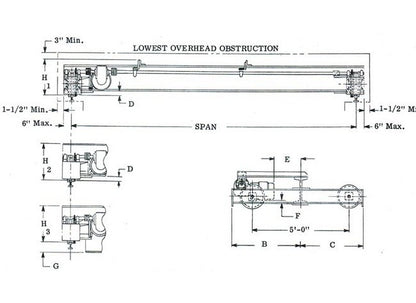

Specifications Dimension B
3'-2"
Specifications Dimension C
3'-0"
Specifications Dimension D
3/4 inches
Specifications Dimension E
1'-2"
Specifications Dimension F
2 inches
Specifications Dimension G
2 inches
Specifications Dimension H1
19 inches
Specifications Dimension H2
16 inches
Specifications Dimension H3
13 inches
Specifications Electric
&nbps;
Specifications Girder Size
S15 x 42.9
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Model
Model TSS Motorized Crane
Specifications Runway Rail
40# A.S.C.E.
Specifications Span
22'-6"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Diameter
8 inches
Specifications Wheel Load Per Wheel
2930 lbs.
