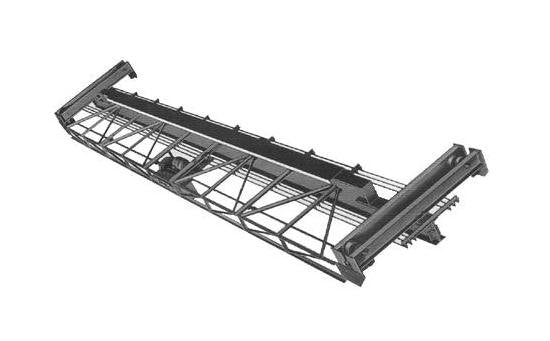

Motor Driven Underhung Single Girder Crane - 7.5 Tons
Motor Driven Underhung Single Girder Crane - 7.5 Tons
SKU:REL-b48f6a
Enhance operations with precision and reliability using our Motor Driven Underhung Single Girder Crane - 7.5 Tons.
Regular price
$13,999.99
Regular price
Sale price
$13,999.99
Unit price
per
Initiate Order
Motor Driven Underhung Single Girder Crane - 7.5 Tons
$13,999.99
Quantity: 1
Claim Your Seller Account
Motor Driven Underhung Single Girder Crane - 7.5 Tons
$13,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your lifting solutions with the Motor Driven Underhung Single Girder Crane. Equipped with precision Tru-Tred Wheels, heavy-duty cam follower bearings, and Timken tapered roller wheel bearings, this crane ensures smooth and efficient operation while minimizing wear. The adjustable electric motor brake guarantees safe deceleration, meeting the demanding requirements of extreme industrial conditions. With a wide range of wheel bases and Center Drive options available, this crane offers versatility and reliability for indoor and outdoor use.
Product Specifications
Design Details 0
Wheel Bases : Wide range of wheel bases available in each capacity range to meet C.M.A.A. wheel base to span ratio thru 60'-0" of Crane Span. Tru-Tred Wheels : Precision machined from alloy steel with flangeless design to meet the most demanding crane service requirements. Side Roller Guidance : Heavy duty cam follower bearings provide smooth non-skewing crane operation plus reduced crane wheel and runway rail wear. Wheel Bearings : Heavy duty long life rated pre-lubricated and sealed Timken tapered roller wheel bearings designed to take the unavoidable shocks of crane duty. Wheel Gearing : Alloy carbon steel precision spur gearing with large pitch diameter pinion gears. Truck Frames : Heavy fabricated steel jig constructed for true-rolling truck operation. Split truck design allows quick easy crane erection on either open end or closed end runway system.Center Drive : Model HD Helical Center Drives are available to meet your crane bridge drive requirements. Precision oil bath lubricated helical gearing is included for smooth efficient crane operation. A standard "Rightway" foot mounted drive motor is connected to the helical gear reducer thru a flexible coupling providing "positive drive" forward-reverse service. Adjustable electric motor brake is suggested for smooth crane deceleration and final stop. Controls : Single speed heavy duty magnetic reversing control is available with a 115 V control volt- age transformer all internally wired to legended terminal strips mounted in a NEMA-1 enclosure. Adjustable ballast resistor is suggested for smooth crane acceleration and reverse plugging gradual deceleration for smooth stop.
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
7 1/2 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type

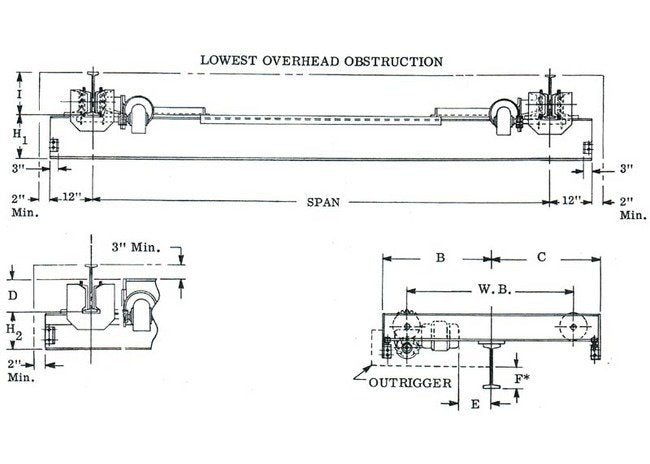

Specifications Dimension A
8 1/2 inches
Specifications Dimension B
3'-10"
Specifications Dimension C
3'-9"
Specifications Dimension D
3/8 inches
Specifications Dimension E
9 inches
Specifications Dimension F
4 5/16 inches
Specifications Dimension G
2 11/16 inches
Specifications Dimension H
1/4 inches
Specifications Dimension I Max
S20 x 66.0
Specifications Dimension I Min
S12 x 31.8
Specifications Dimension J
15/16 inches
Specifications Dimension K
3 3/4 inches
Specifications Dimension L
1 inches
Specifications Dimension M
3 1/2 inches
Specifications Dimension N
6 3/8 inches
Specifications Dimension P
8 inches
Specifications Dimension Q
14 1/2 inches
Specifications Dimension R
1 1/2 inches
Specifications Dimension S
3/8 inches
Specifications Dimension T
3 inches
Specifications Dimension U
5/8 inches
Specifications Dimension V
3 inches
Specifications Dimension W
13/16 inches
Specifications Electric
&nbps;
Specifications Gear Ratio
2.29:1
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Model
USC
Specifications Net Weight Per Pair
1175 lbs.
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Base
6'-0"
Specifications Wheel Load Per Pair
13000 lbs.
