Motor Starter with 1.16-2.5A Setting Current Range
Motor Starter with 1.16-2.5A Setting Current Range
SKU:MOT-19ced5
Reliable Shamrock Controls Manual Motor Starter for phase failure protection and flexible mounting options. Setting current range: 1.16-2.5A.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Motor Starter with 1.16-2.5A Setting Current Range
$69.99
Quantity: 1
Claim Your Seller Account
Motor Starter with 1.16-2.5A Setting Current Range
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

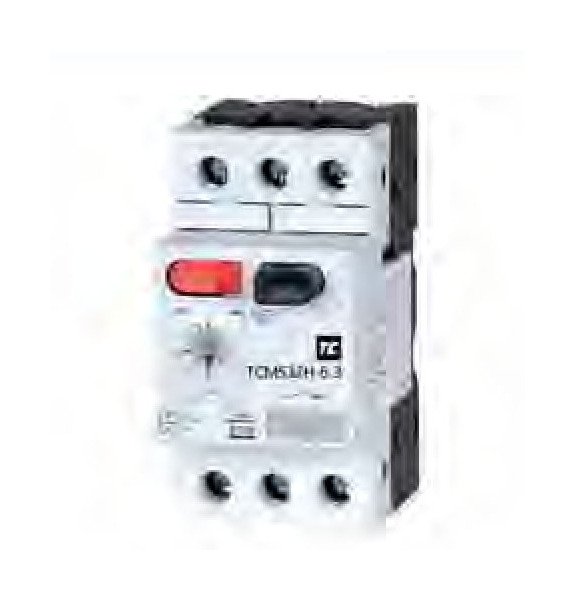

The Shamrock Controls Manual Motor Starter offers reliable protection against overloads and short circuits, compliant with EN 60947-4-1 and IEC 947-4-1 standards. This starter allows for phase failure sensitivity, snap fitting or screw mounting, and a setting current range of 1.16 to 2.5A. Suitable for controlling A.C. electric motors up to 11kW, this starter meets AC-3 and IEC/EN 60947-2 standards, making it ideal for various industrial applications.
Product Specifications
Additional Information Additional Information

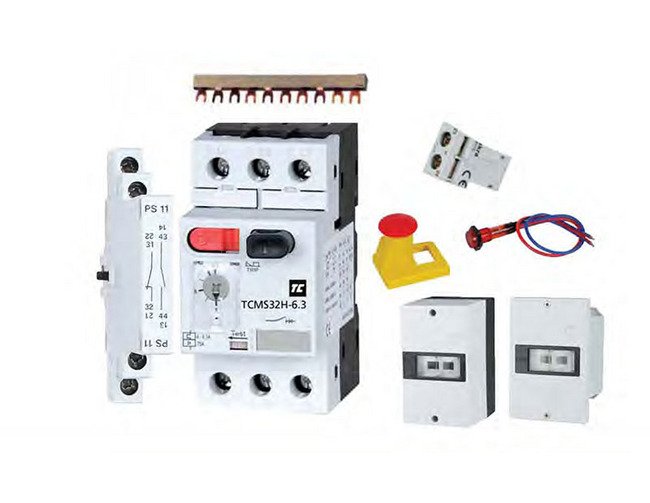

Main application field : control (start-up, protection and switch-off) of A.C. electric motors with power up to 11 kW (380/400 V) or other consumers up to 25 A; it can also be used as the main switch according to EN 60204 standardsNumerous accessories make the application field wider and enable the fulfillment of the majority of user's demands
Auxiliary Circuit Data Electrical Rating According To Internatio
0.1 A
Auxiliary Circuit Data Rated Insulation Voltage For Front Auxili
300 V
Auxiliary Circuit Data Rated Insulation Voltage For Side Auxilia
500 V
Auxiliary Circuit Data Terminal Capacity For Front Auxiliary Con
0.75 to 2.5 mm²
Auxiliary Circuit Data Terminal Capacity For Side Auxiliary Cont
0.75 to 2.5 mm²
Auxiliary Circuit Data Thermal Current Ith For Front Auxiliary C
1 A
Auxiliary Circuit Data Thermal Current Ith For Side Auxiliary Co
5 A
Auxiliary Circuit Data Tightning Torque For Front Auxiliary Cont
1 N·m
Auxiliary Circuit Data Tightning Torque For Side Auxiliary Conta
1 N·m
Auxiliary Circuit Data Uvtshunt Release Control Voltage
24 to 600 V
Auxiliary Circuit Data Uvtshunt Release Rated Frequency
50 Hz | 60 Hz
Auxiliary Circuit Data Uvtshunt Release Terminal Capacity
0.75 to 2.5 mm²
Auxiliary Circuit Data Uvtshunt Release Tightning Torque
1 N·m

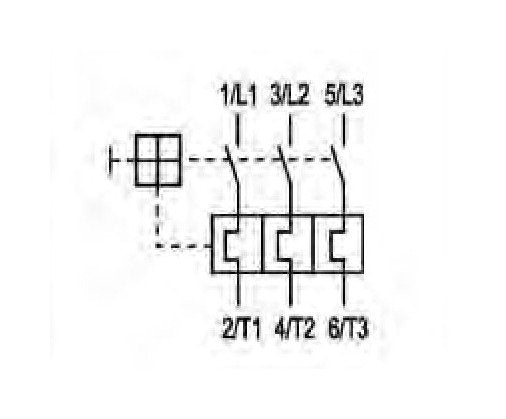

Main Circuit Designation Of Connection Terminals
1-L1 | 2-T1 | 3-L2 | 4-T2 | 5-L3 | 6-T3
Main Circuit Flexible Terminal Capacity
0.75 to 6 mm²
Main Circuit Maximum Operational Voltage Ue
690 V
Main Circuit Number Of Poles
3
Main Circuit Operating Current Of Magnetic Overload Release
11 In < 1 = 13 In ± 20 % (In = Upper Setting Limit)
Main Circuit Operating Current Of Thermal Overload Release
1.05 Ir < 1 = 1.20 Ir (Ir = Set Values)
Main Circuit Power Dissipation On Pole At Load Within
2 to 2.5 W
Main Circuit Rigid Terminal Capacity
0.75 to 10 mm²
Main Circuit Screw
Protected Against Falling Out | With Self Lifiting Clamp
Main Circuit Screw Head
PZ2
Main Circuit Sensitivity To Phase Failure
Yes
Main Circuit Setting Current Range
1.16 to 2.5 A
Main Circuit Tightning Torque
2.0 N·m
Main Circuit Trip Class According To International Electrotechni
10
Power Power At 200 Volt V And 3 Phase
0.5 hp
Power Power At 230 Volt V And 3 Phase
0.5 hp
Power Power At 460 Volt V And 3 Phase
1 hp
Power Power At 575 Volt V And 3 Phase
1.5 hp
