MP Series 0.252 Inch (in) Bore Diameter and 0.125 Inch (in) Maximum Mating Cable Diameter Standard Bronze Bushing Nylon Pulley
MP Series 0.252 Inch (in) Bore Diameter and 0.125 Inch (in) Maximum Mating Cable Diameter Standard Bronze Bushing Nylon Pulley
SKU:MPS-3bc0ce
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
MP Series 0.252 Inch (in) Bore Diameter and 0.125 Inch (in) Maximum Mating Cable Diameter Standard Bronze Bushing Nylon Pulley
$49.99
Quantity: 1
Claim Your Seller Account
MP Series 0.252 Inch (in) Bore Diameter and 0.125 Inch (in) Maximum Mating Cable Diameter Standard Bronze Bushing Nylon Pulley
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

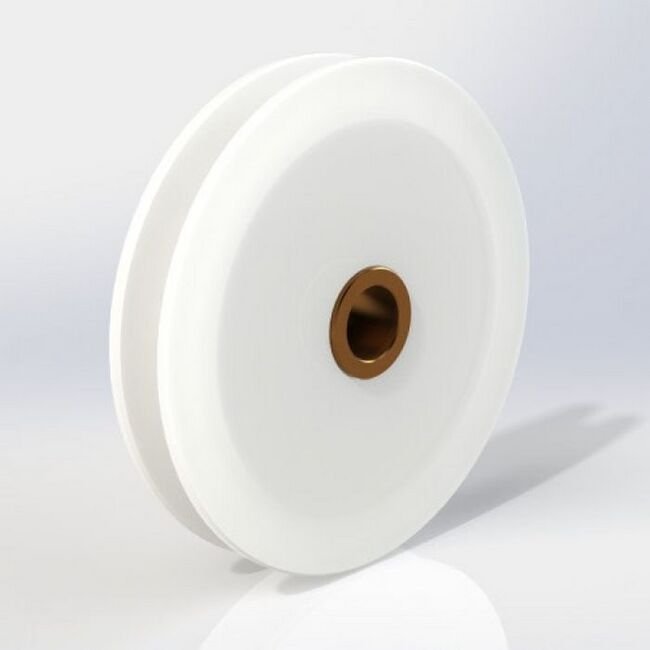

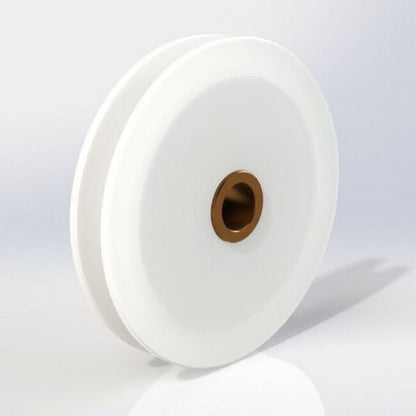

MP Series nylon pulleys offers an oil-impregnated bushing of porous, sintered, self-lubricating bronze. This vacuum impregnated oil, equivalent to SAE 30, supplements the pure bronze structure and forms a hydraulic cushion which absorbs unusual shock and permits the bushing to carry heavier loads than the SP or UP series pulleys. This nylon pulley is also highly corrosion and wear resistant.
Product Specifications
Note
This product has a minimum quantity of 5.

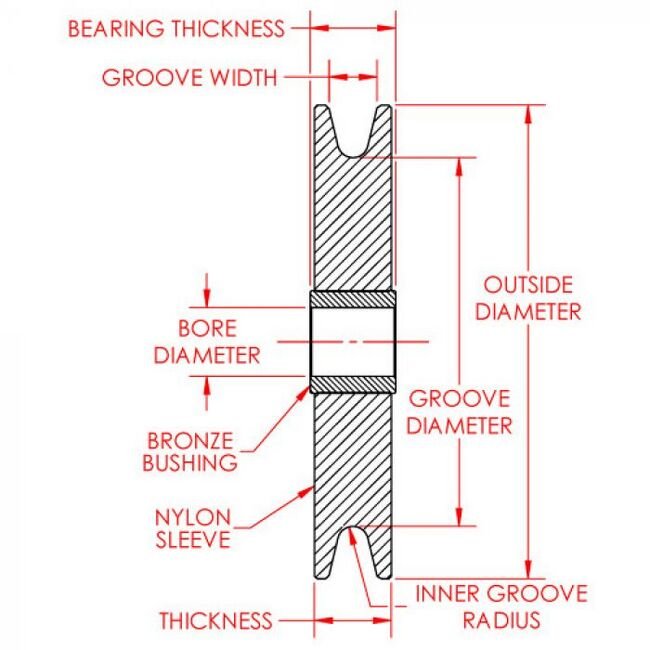

Technical Specs Bearing Thickness
0.313 in
Technical Specs Bore Condition
Bronze Bushing
Technical Specs Bore Diameter
0.252 in
Technical Specs Brands
Carl Stahl Sava Industries, Inc.
Technical Specs Cable Material
Nylon
Technical Specs Cable Type
Standard
Technical Specs Inner Groove Radius
0.056 in
Technical Specs Load Rating
180
Technical Specs Maximum Mating Cable Diameter
0.125 in
Technical Specs Outer Groove Diameter
1.375 in
Technical Specs Outside Diameter
1.75 in
Technical Specs Part
MP4138
Technical Specs Thickness
0.281 in
