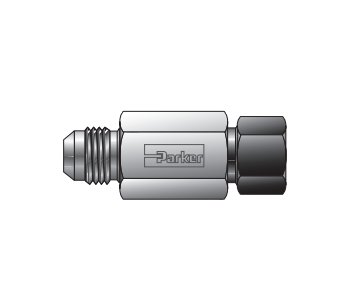

MPI™ 37° Flare to MPI™ Connector XHBMP7
MPI™ 37° Flare to MPI™ Connector XHBMP7
SKU:FIT-e79946
Secure and gas-tight MPI™ 37° Flare to MPI™ Connector XHBMP7 for high-pressure applications, made with corrosion-resistant materials and ASME standard compliance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
MPI™ 37° Flare to MPI™ Connector XHBMP7
$29.99
Quantity: 1
Claim Your Seller Account
MPI™ 37° Flare to MPI™ Connector XHBMP7
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ 37° Flare to MPI™ Connector XHBMP7 is a premium medium-pressure compression fitting designed by Parker Hannifin, the original Patent Holder (US 6851729 B2). Ideal for a wide range of applications in industries like off-shore oil and gas exploration, research labs, and high-pressure facilities, this connector ensures secure, gas-tight connections up to 15,000 psi. Made from heat code traceable 316 SS or optional 2507 Super Duplex materials, every MPI™ Fitting includes front and back ferrules, along with a compression gland nut, ready for easy installation. Engineered to ASME standards with safety factors in mind, this connector boasts features like corrosion-resistant Parker Suparcase® ferrules, longer thread areas for improved pressure resistance, and a molybdenum disulfide-coated inverted nut for easy assembly and multiple remakes.
Product Specifications

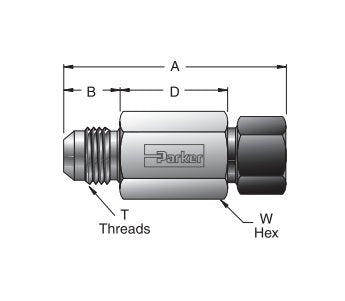

Dimensions 37 Flare Adapter
1/4
Dimensions A
2.08 in
Dimensions B
.55 in
Dimensions Connection Type
Straight Thread to MPI™
Dimensions D
1.03 in
Dimensions Mpi Size
1/4
Dimensions T Thread
7/16 - 20
Dimensions Working Mawp Pressure
15000 psig
Dimensions W Hex
5/8 in
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, 3/4 and 1 inch 316 SS tubing and 3/4 and 1 inch 2507 Tubing must be hydraulically preset. Note: All sizes can be hydraulically preset using the Parker Preset Tooling.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Engineering Standards Used
Parker Hannifin has designed all fittings and valves using the following ASME Standards and associated Safety Factors: ASME B31.1 Power Piping ASME B31.3 Process Piping
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media.Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
