MPI™ High Pressure Tube Stub Adapter - X41HT7
MPI™ High Pressure Tube Stub Adapter - X41HT7
SKU:FIT-541e43
Secure high-pressure tube connections with our MPI™ Tube Stub Adapter by Parker Hannifin. Designed for lasting durability and optimal sealing, this fitting meets ASME standards for reliable performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
MPI™ High Pressure Tube Stub Adapter - X41HT7
$29.99
Quantity: 1
Claim Your Seller Account
MPI™ High Pressure Tube Stub Adapter - X41HT7
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

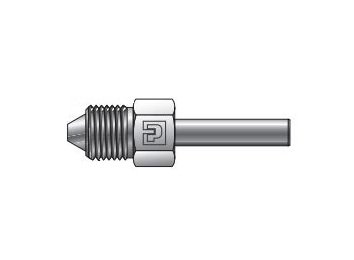

The MPI™ High Pressure Tube Stub Adapter by Parker Hannifin is a premium fitting designed to ensure secure, gas-tight connections for applications up to 15,000 psi. Made with corrosion-resistant materials, this fitting features front and back ferrules for optimal sealing and mechanical hold on the tube, along with a molybdenum disulfide-coated inverted nut for easy assembly. Compliant with ASME standards, this fitting is engineered for durability, vibration resistance, and ease of assembly, making it ideal for off-shore oil and gas platforms, research labs, and industrial facilities.
Product Specifications

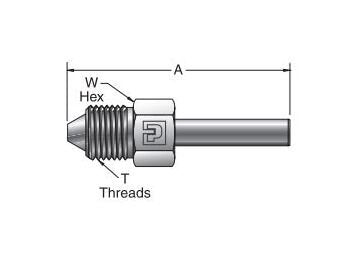

Dimensions A
2.83 in
Dimensions Connection Type
Straight Thread to Tube Stub
Dimensions High Pressure Adapter Size
1/4
Dimensions Mpi Tube Stub
3/8
Dimensions T Thread
9/16-18
Dimensions W Hex
5/8 in
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, 3/4 and 1 inch 316 SS tubing and 3/4 and 1 inch 2507 Tubing must be hydraulically preset. Note: All sizes can be hydraulically preset using the Parker Preset Tooling.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Engineering Standards Used
Parker Hannifin has designed all fittings and valves using the following ASME Standards and associated Safety Factors: ASME B31.1 Power Piping ASME B31.3 Process Piping
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media.Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
