Enhance your valve operation with the MPI™ MAB Electric Actuator - 24VDC. This electric actuator features a durable powder-coated aluminum housing, CE & CSA approval for NEMA 4 and 4x, and a manual override for added control. With an operating temperature range of 0oF to 160oF, this actuator ensures reliable performance in various environments. Interface with control systems for seamless automation, and choose from 120 & 220 VAC, 50/60 Hz, and ATEX options. Ideal for laboratories, chemical research, and more.
Product Specifications

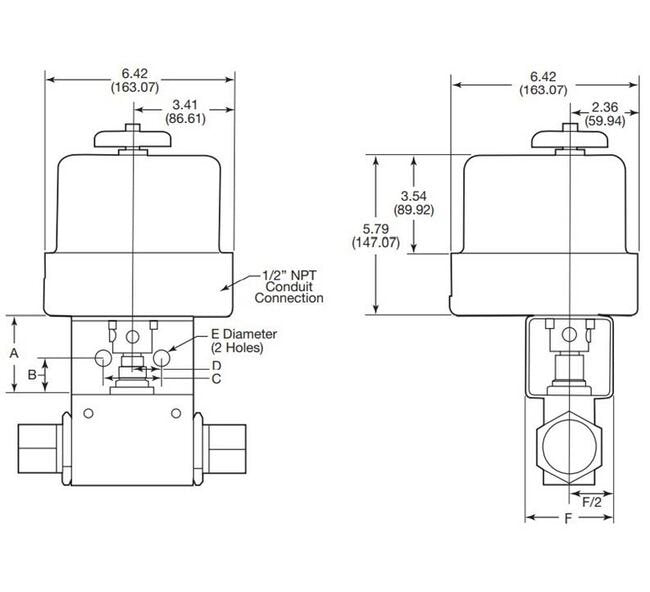

Dimensions A
3.00 in
Dimensions Actuator Height
5.79 in
Dimensions Actuator Length
6.42 in
Dimensions Actuator Width
6.42 in
Dimensions B
1.50 in
Dimensions C
2.00 in
Dimensions D
1.00 in
Dimensions E
.56 in
Dimensions F
3.00 in
Dimensions No Load Time Openclose
5 sec
Dimensions Voltage
24 DC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
