MPI™ MAB Series 2 Way Ball Valve - High Pressure 15000 psi
MPI™ MAB Series 2 Way Ball Valve - High Pressure 15000 psi
SKU:VAL-ce0ca4
Experience precision and reliability with the MPI™ MAB Series 2 Way Ball Valve - Ideal for high-pressure applications up to 15000 psi.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
MPI™ MAB Series 2 Way Ball Valve - High Pressure 15000 psi
$299.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series 2 Way Ball Valve - High Pressure 15000 psi
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

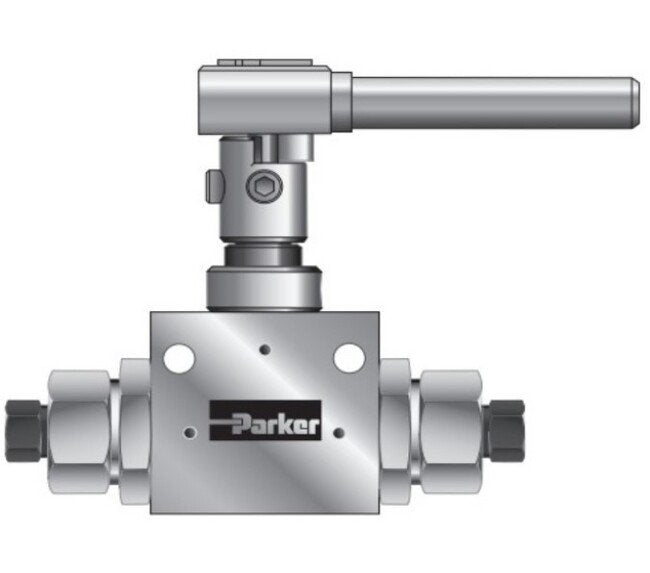

The MPI™ MAB Series 2 Way Ball Valve is engineered for precision performance in media shutoff or switching applications up to 15000 psi. Featuring a single-piece trunnion-style ball design and re-torqueable seats, this valve is an ideal choice for severe service conditions. Its unique design eliminates shear failure, reduces side loading, and offers a longer service life. The full port flow path minimizes pressure drop, while the low friction, pressure-assisted stem seal enhances cycle life and reduces operating torque. With a temperature range from 0°F to 400°F as standard, upgradable to 500°F, this valve ensures reliable operation across various environments. Viton™ Fluoroelastomer/FKM o-rings come standard, providing durable sealing. Suitable for both 2-way Bi-Directional and 3-Way applications, this valve offers versatility and reliability for your critical applications.
Ready to Grow Without Cash Flow Constraints?

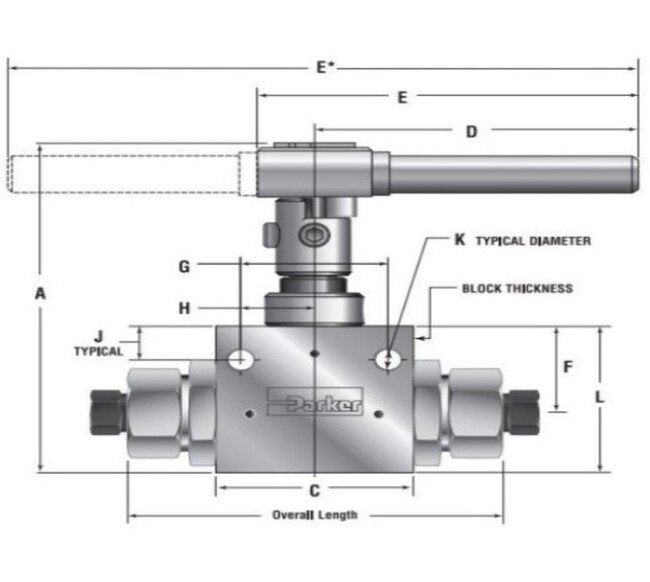

Product Specifications
Dimensions A
4.33 in
Dimensions Block Thickness
1.00 in
Dimensions C
2.00 in
Dimensions Connection
9/16 MPI™
Dimensions Cv
1.51 in
Dimensions D
3.37 in
Dimensions E
3.83 in
Dimensions F
1.13 in
Dimensions G
1.50 in
Dimensions H
.75 in
Dimensions J
.44 in
Dimensions K
.28 in
Dimensions L
1.91 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.25 in
Dimensions Orifice Size
1/4 in
Dimensions Overall Length
5.34 in
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
Specifications Repair Kits
R2B4S-2507
