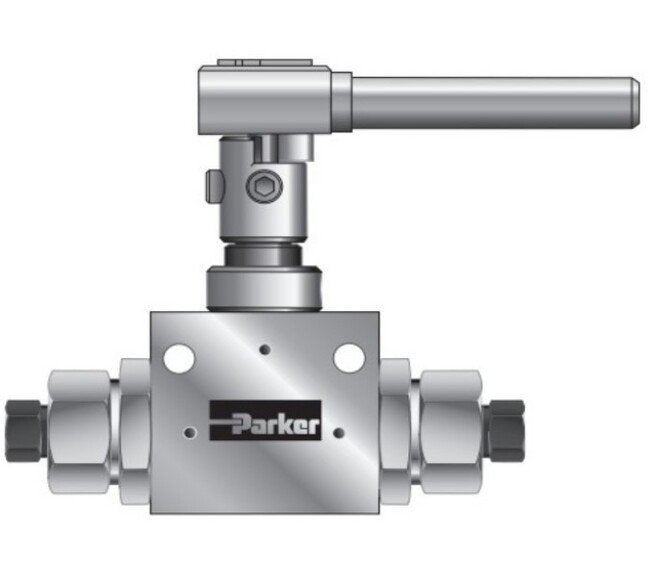

The MPI™ MAB Series 2-Way Ball Valves by Parker are expertly engineered for precise quarter and half-turn media shutoff or switching applications up to 15,000 psi, making them ideal for severe service environments. Featuring a single-piece trunnion-style ball design with re-torqueable seats, these valves ensure durability and reliability. With customizable end connections, these valves cater to specific customer needs. The design includes one-piece trunnion style ball/stem, low friction stem seal, and Viton™ o-rings, ensuring high performance and longevity. Operating at a temperature range of 0°F to 400°F as standard, these valves offer versatility and efficiency for various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

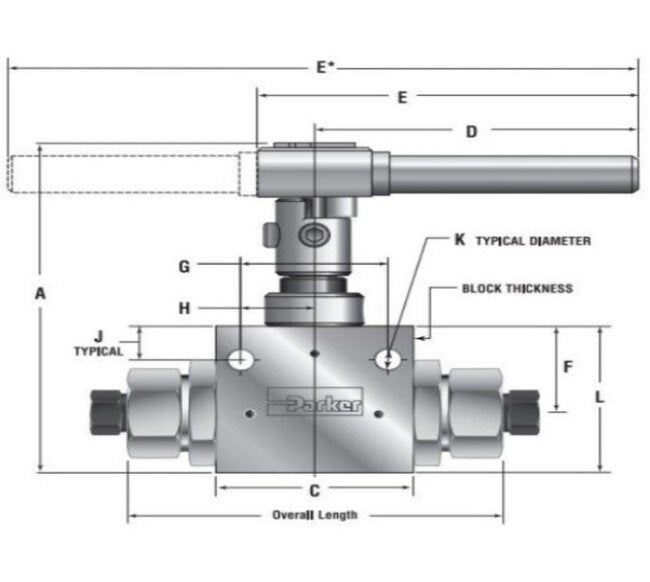

Dimensions A
6.43 in
Dimensions Block Thickness
1.75 in
Dimensions C
4.13 in
Dimensions Connection
1 MPI™
Dimensions Cv
10.20 in
Dimensions D
5.12 in
Dimensions E
10.24 in
Dimensions F
1.76 in
Dimensions G
3.00 in
Dimensions H
1.50 in
Dimensions J
.50 in
Dimensions K
.28 in
Dimensions L
3.55 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.50 in
Dimensions Orifice Size
1/2 in
Dimensions Overall Length
10.85 in
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
Specifications Repair Kits
R2B8S
