MPI™ MAB Series 2 Way Ball Valves
MPI™ MAB Series 2 Way Ball Valves
SKU:VAL-a0cb28
Precise, durable MPI™ MAB Series 2 Way Ball Valves for up to 15,000 psi. Ideal for severe service applications with low friction stem seals and Viton™ o-rings.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
MPI™ MAB Series 2 Way Ball Valves
$199.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series 2 Way Ball Valves
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

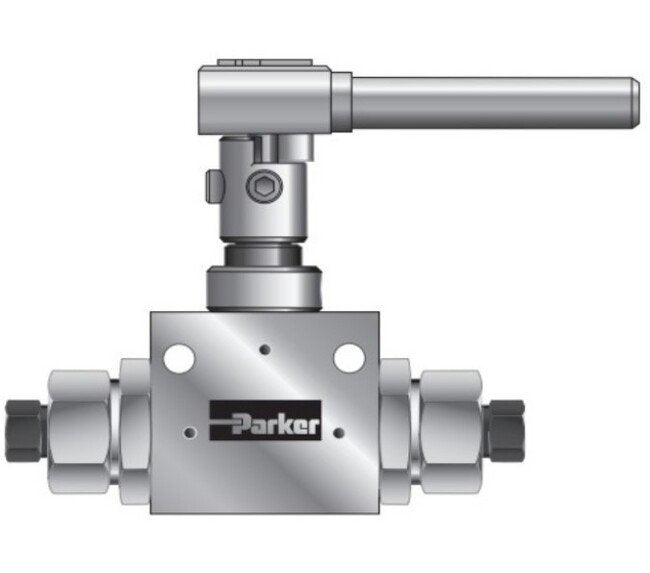

The MPI™ MAB Series 2 Way Ball Valves by Parker are designed for precise media shutoff or switching applications up to 15,000 psi, making them ideal for severe service environments. Featuring a one-piece trunnion style ball/stem design, these valves eliminate shear failure and reduce side loading. The re-torqueable PEEK™ Seat Glands offer extended durability, while the full port flow path minimizes pressure drop. With a temperature range from 0°F to 400°F, these valves also boast low friction stem seals, enhancing cycle life and reducing operating torque. Viton™ Fluoroelastomer/FKM o-rings ensure reliable performance, making these valves a top choice for critical applications.
Ready to Grow Without Cash Flow Constraints?

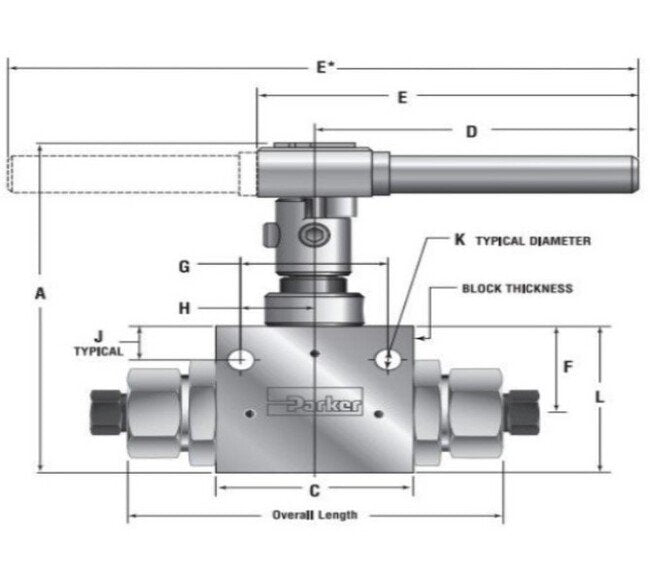

Product Specifications
Dimensions A
4.33 in
Dimensions Block Thickness
1.00 in
Dimensions C
2.00 in
Dimensions Connection
3/8 MPI™
Dimensions Cv
1.51 in
Dimensions D
3.37 in
Dimensions E
3.83 in
Dimensions F
1.13 in
Dimensions G
1.50 in
Dimensions H
.75 in
Dimensions J
.44 in
Dimensions K
.28 in
Dimensions L
1.91 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.25 in
Dimensions Orifice Size
1/4 in
Dimensions Overall Length
4.19 in
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
Specifications Repair Kits
R2B4S-2507
