MPI™ MAB Series 2 Way Ball Valves - 1/2" Orifice, 15000 psi MAWP
MPI™ MAB Series 2 Way Ball Valves - 1/2" Orifice, 15000 psi MAWP
SKU:VAL-ddea41
Precision-engineered MPI™ MAB Series 2 Way Ball Valves for up to 15,000 psi media shutoff. Ideal for severe service applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
MPI™ MAB Series 2 Way Ball Valves - 1/2" Orifice, 15000 psi MAWP
$299.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series 2 Way Ball Valves - 1/2" Orifice, 15000 psi MAWP
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

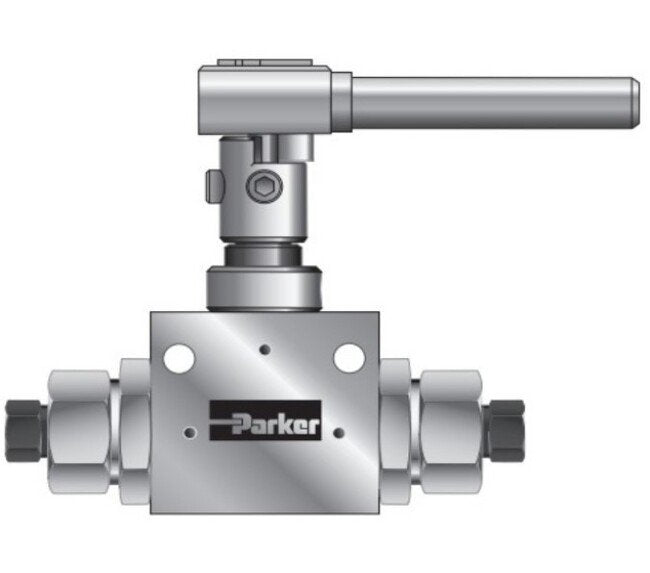

The MPI™ MAB Series 2 Way Ball Valves are engineered by Parker for precision quarter and half-turn media shutoff applications up to 15,000 psi. Featuring a single-piece trunnion ball design and re-torqueable seats, these valves excel in severe service environments. With options for manual, pneumatic, and electric actuation, the MAB series ensures reliability and durability. The full port flow path minimizes pressure drop, while the low-friction stem seal enhances cycle life. Designed with CW 316 Stainless Steel as standard (2507 Super Duplex optional), these valves offer exceptional performance and temperature range from 0°F to 400°F (0°C to 204°C). Viton™ Fluoroelastomer o-rings, compliance with stringent standards, and a range of connection options make the MPI™ MAB Series a top choice for demanding industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

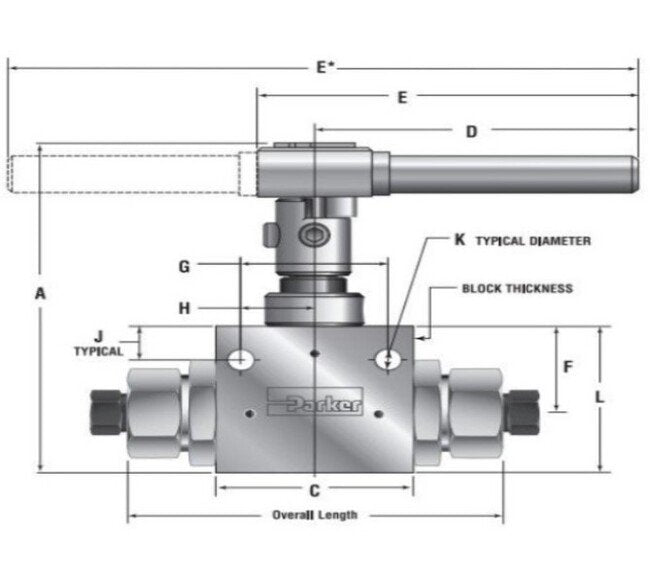

Dimensions A
6.43 in
Dimensions Block Thickness
1.75 in
Dimensions C
4.13 in
Dimensions Connection
1 MPI™
Dimensions Cv
10.20 in
Dimensions D
5.12 in
Dimensions E
10.24 in
Dimensions F
1.76 in
Dimensions G
3.00 in
Dimensions H
1.50 in
Dimensions J
.50 in
Dimensions K
.28 in
Dimensions L
3.55 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.50 in
Dimensions Orifice Size
1/2 in
Dimensions Overall Length
10.85 in
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
Specifications Repair Kits
R2B8S-2507
