MPI™ MAB Series 2 Way Ball Valves
MPI™ MAB Series 2 Way Ball Valves
SKU:VAL-cbe2bb
Discover the MPI™ MAB Series 2 Way Ball Valves, offering exceptional durability and performance for high-pressure applications. Designed for reliability and longevity.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
MPI™ MAB Series 2 Way Ball Valves
$299.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series 2 Way Ball Valves
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

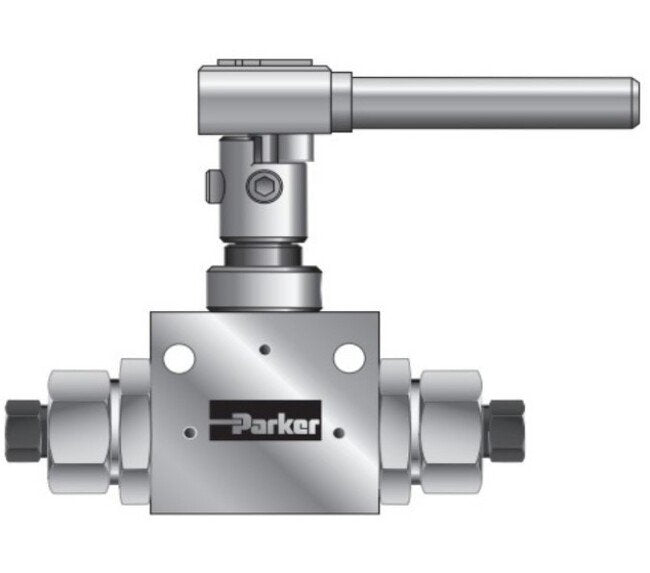

The MPI™ MAB Series 2 Way Ball Valves by Parker are engineered for precise quarter and half turn media shutoff or switching, with a robust design capable of handling up to 15,000 psi. Featuring a single-piece trunnion ball design and re-torqueable seats, these valves excel in severe service applications. The full port flow path minimizes pressure drop, while the low-friction stem seal enhances cycle life. With a temperature range from 0°F to 400°F, these valves are ideal for a wide range of applications. Viton™ Fluoroelastomer o-rings and CW 316 Stainless Steel material ensure durability and reliability, meeting the highest industry standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

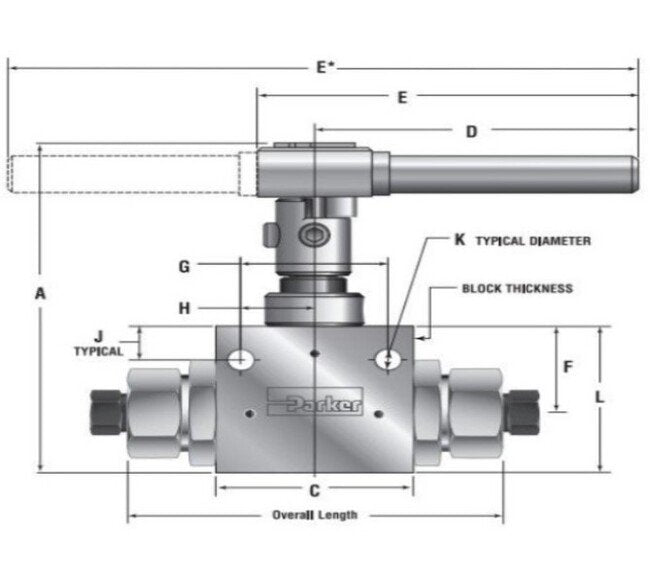

Dimensions A
4.99 in
Dimensions Block Thickness
1.38 in
Dimensions C
3.00 in
Dimensions Connection
9/16 MPI™
Dimensions Cv
5.20 in
Dimensions D
4.99 in
Dimensions E
5.45 in
Dimensions F
1.38 in
Dimensions G
2.00 in
Dimensions H
1.00 in
Dimensions J
.41 in
Dimensions K
.28 in
Dimensions L
2.50 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.38 in
Dimensions Orifice Size
3/8 in
Dimensions Overall Length
6.27 in
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
Specifications Repair Kits
R2B6S
