MPI™ MAB Series 2 Way Ball Valves
MPI™ MAB Series 2 Way Ball Valves
SKU:VAL-83165b
High-performance MPI™ MAB Series 2 Way Ball Valves for precise media control up to 15,000 psi. Ideal for severe service applications with exceptional durability and reliability.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
MPI™ MAB Series 2 Way Ball Valves
$299.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series 2 Way Ball Valves
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

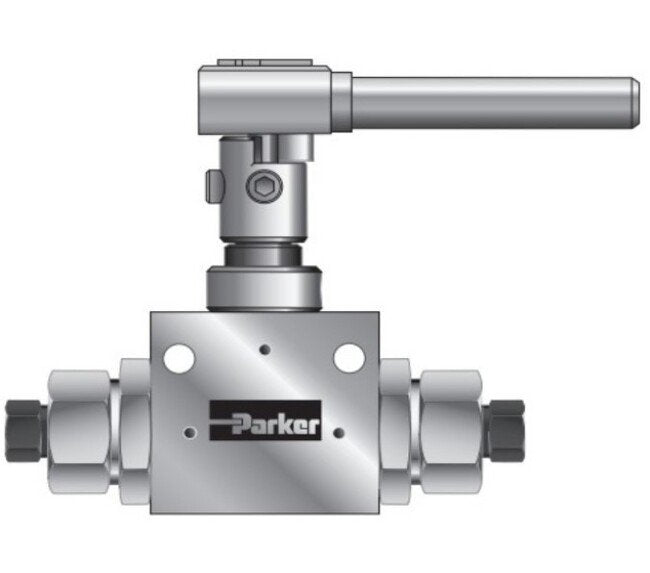

The MPI™ MAB Series 2 Way Ball Valves by Parker are expertly crafted manual, pneumatic, and electrically actuated valves built for quarter and half-turn media shutoff or switching applications, handling pressures up to 15,000 psi. With a single-piece trunnion style ball design and re-torqueable seats, these valves excel in severe service applications. Featuring a variety of end connections, they offer versatility for specific customer needs. The valves boast features like a full-port flow path for minimal pressure drop, low friction stem seals for increased cycle life, and a temperature range of 0°F to 400°F standard, extendable to 500°F. This product is engineered to meet the highest standards of performance and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

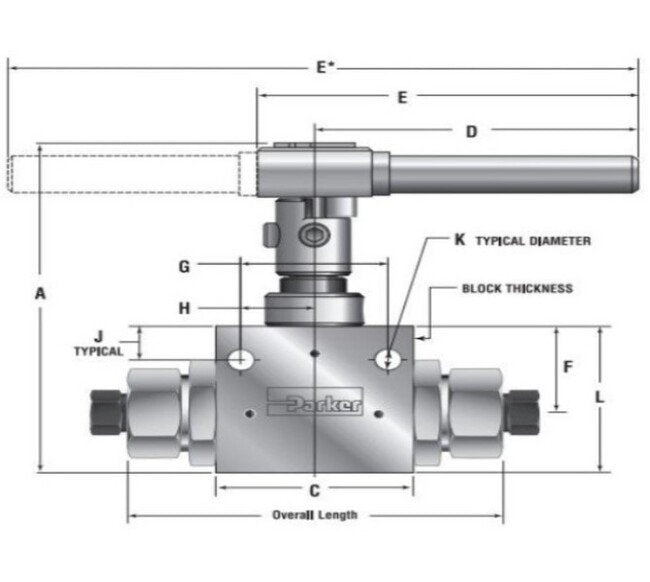

Dimensions A
4.99 in
Dimensions Block Thickness
1.38 in
Dimensions C
3.00 in
Dimensions Connection
1/2 MPI™
Dimensions Cv
3.24 in
Dimensions D
4.99 in
Dimensions E
5.45 in
Dimensions F
1.38 in
Dimensions G
2.00 in
Dimensions H
1.00 in
Dimensions J
.41 in
Dimensions K
.28 in
Dimensions L
2.50 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.31 in
Dimensions Orifice Size
3/8 in
Dimensions Overall Length
6.27 in
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
Specifications Repair Kits
R2B6S
