Reliable MPI™ MAB Series 2-Way Ball Valves - Designed for high-pressure industrial applications, featuring a durable one-piece trunnion style ball/stem design and superior temperature resilience.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
MPI™ MAB Series 2-Way Ball Valves - High-Pressure Industrial Valves
$399.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series 2-Way Ball Valves - High-Pressure Industrial Valves
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

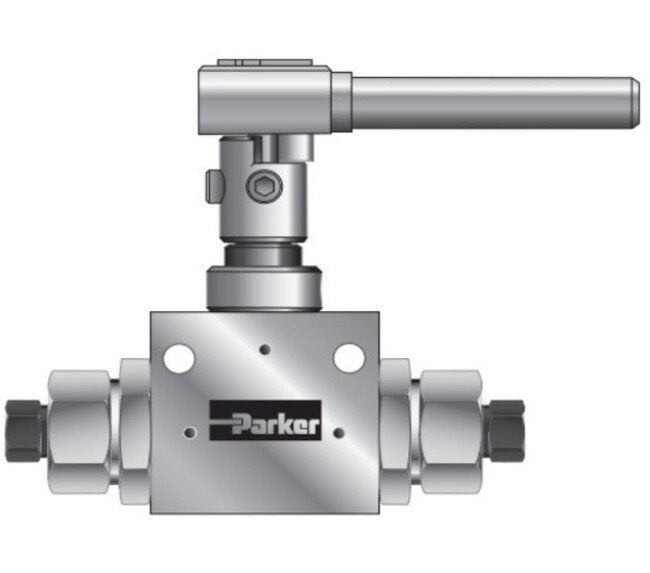

The MPI™ MAB Series 2-Way Ball Valves are meticulously engineered for demanding industrial applications, offering manual, pneumatic, and electric actuation options. Designed for media shutoff or switching up to 15,000 psi, these valves feature a one-piece trunnion style ball/stem design that eliminates shear failure and reduces side loading. The re-torqueable PEEK™ Seat Glands ensure longer life while the full port flow path minimizes pressure drop. With temperature resilience ranging from 0°F to 400°F, expandable to 500°F, and Viton™ Fluoroelastomer o-rings as standard, these valves are ideal for severe service environments.
Ready to Grow Without Cash Flow Constraints?

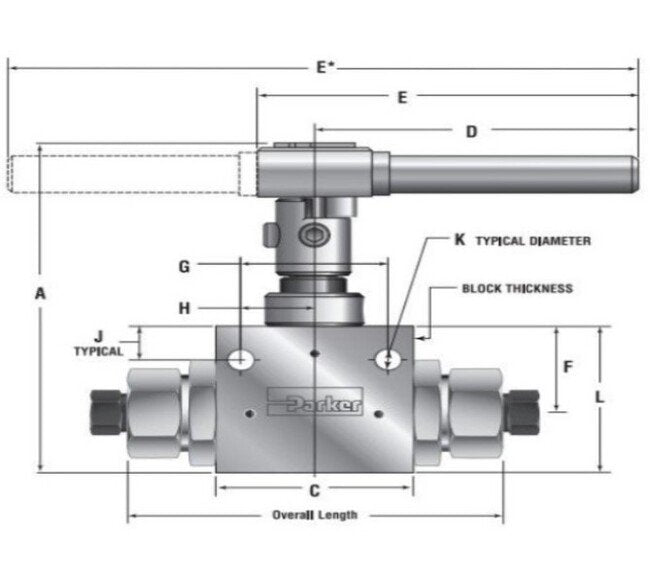

Product Specifications
Dimensions A
4.33 in
Dimensions Block Thickness
1.00 in
Dimensions C
2.00 in
Dimensions Connection
1/4 MPI™
Dimensions Cv
.25 in
Dimensions D
3.37 in
Dimensions E
3.83 in
Dimensions F
1.13 in
Dimensions G
1.50 in
Dimensions H
.75 in
Dimensions J
.44 in
Dimensions K
.28 in
Dimensions L
1.91 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.13 in
Dimensions Orifice Size
1/4 in
Dimensions Overall Length
4.19 in
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
Specifications Repair Kits
R2B4S-2507
