MPI™ MAB Series 2 Way Ball Valves - High Pressure Industrial Valves
MPI™ MAB Series 2 Way Ball Valves - High Pressure Industrial Valves
SKU:VAL-e2e56f
Discover MPI™ MAB Series 2 Way Ball Valves - Ideal for industrial applications, with high pressure handling up to 15000 psi. Durable, reliable, and compliant.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
MPI™ MAB Series 2 Way Ball Valves - High Pressure Industrial Valves
$299.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series 2 Way Ball Valves - High Pressure Industrial Valves
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

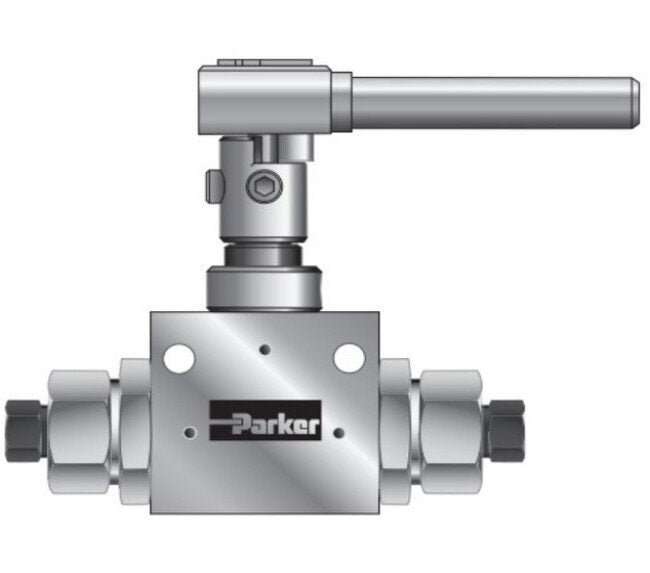

The MPI™ MAB Series 2 Way Ball Valves by Parker are meticulously engineered to meet the demanding requirements of industrial applications, offering manual, pneumatic, or electric operation with a max pressure of 15,000 psi. Featuring a robust single-piece trunnion style ball design and re-torqueable seats, these valves excel in severe service conditions. The valve's versatility is enhanced by its various end connections for tailored solutions. Designed for durability and reliability, they boast features like low friction PTFE stem seals, full port flow path for minimal pressure drop, and a wide temperature range. With compliance to stringent industry standards, the MPI™ MAB Series Ball Valves ensure efficient and safe fluid control in high-pressure environments.
Ready to Grow Without Cash Flow Constraints?

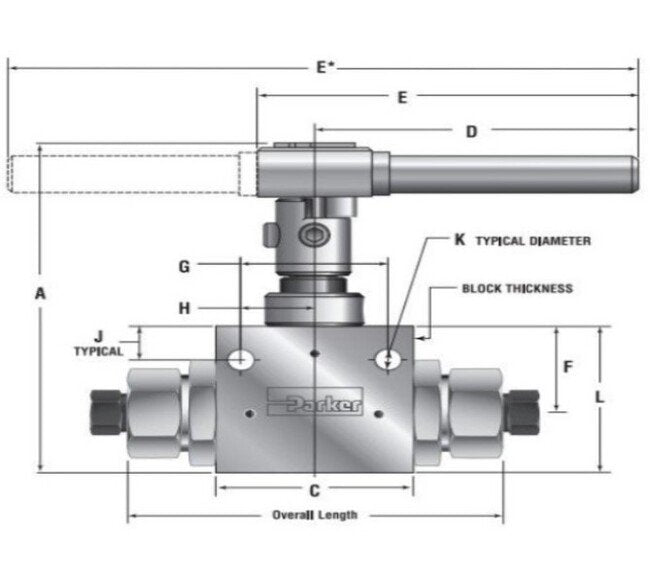

Product Specifications
Dimensions A
6.43 in
Dimensions Block Thickness
1.75 in
Dimensions C
4.13 in
Dimensions Connection
3/4 MPI™
Dimensions Cv
10.20 in
Dimensions D
5.12 in
Dimensions E
10.24 in
Dimensions F
1.76 in
Dimensions G
3.00 in
Dimensions H
1.50 in
Dimensions J
.50 in
Dimensions K
.28 in
Dimensions L
3.55 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.50 in
Dimensions Orifice Size
1/2 in
Dimensions Overall Length
10.85 in
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
Specifications Repair Kits
R2B8S-2507
