MPI™ MAB Series 2 Way Ball Valves - High-Pressure Shutoff Solutions
MPI™ MAB Series 2 Way Ball Valves - High-Pressure Shutoff Solutions
SKU:VAL-93ccb9
Enhance your industrial operations with MPI™ MAB Series 2 Way Ball Valves - Designed for durability, reliability, and high-pressure applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
MPI™ MAB Series 2 Way Ball Valves - High-Pressure Shutoff Solutions
$249.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series 2 Way Ball Valves - High-Pressure Shutoff Solutions
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series 2-Way Ball Valves by Parker are engineered for precise media shutoff and switching up to 15,000 psi, catering to quarter and half-turn applications. Featuring a single-piece trunnion ball design and re-torqueable seats, these valves excel in severe service conditions. With a diverse range of end connections, these valves offer customization for specific industrial needs. The design ensures long-lasting durability, low torque operation, and minimal pressure drop, making them ideal for demanding environments. Suitable for temperature ranges from 0°F to 400°F, with optional configurations up to 500°F, these valves are equipped with high-quality materials, ensuring reliability and efficiency.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

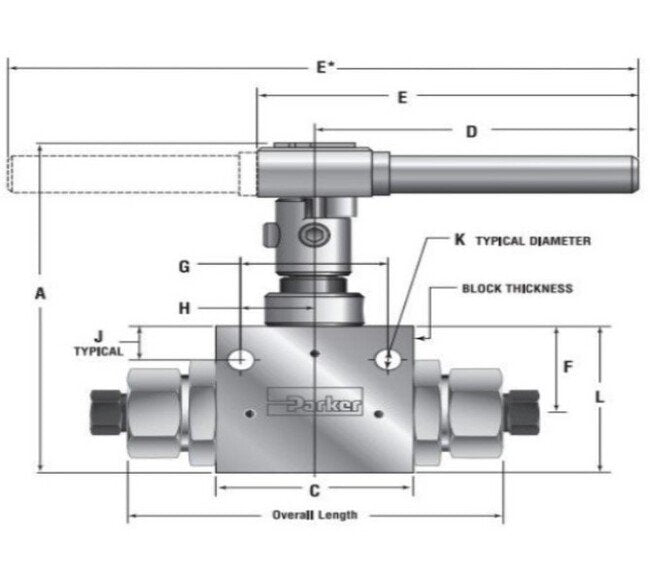

Dimensions A
6.43 in
Dimensions Block Thickness
1.75 in
Dimensions C
4.13 in
Dimensions Connection
3/4 MPI™
Dimensions Cv
10.20 in
Dimensions D
5.12 in
Dimensions E
10.24 in
Dimensions F
1.76 in
Dimensions G
3.00 in
Dimensions H
1.50 in
Dimensions J
.50 in
Dimensions K
.28 in
Dimensions L
3.55 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.50 in
Dimensions Orifice Size
1/2 in
Dimensions Overall Length
10.85 in
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
Specifications Repair Kits
R2B8S
