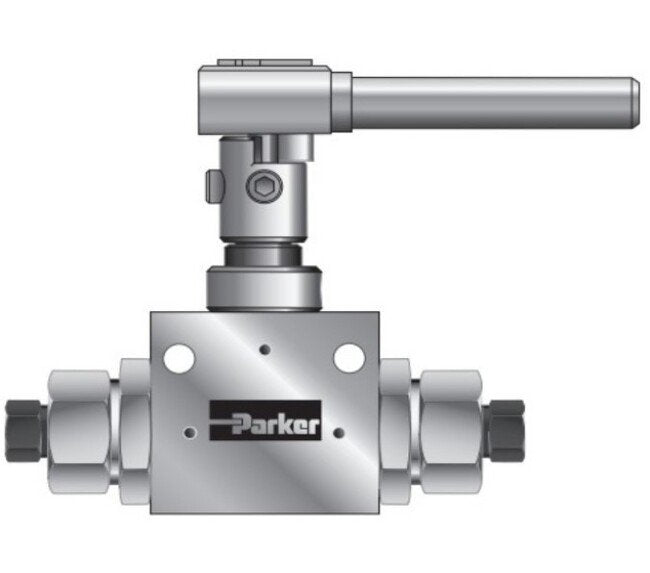

MPI™ MAB Series 2 Way Ball Valves - High Pressure Valves
MPI™ MAB Series 2 Way Ball Valves - High Pressure Valves
SKU:VAL-328668
High pressure MPI™ MAB Series 2 Way Ball Valves for demanding applications up to 15,000 psi. Durable, reliable, and adaptable for critical processes.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
MPI™ MAB Series 2 Way Ball Valves - High Pressure Valves
$349.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series 2 Way Ball Valves - High Pressure Valves
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series 2 Way Ball Valves are engineered to perform in demanding quarter and half turn media shutoff or switching applications up to 15,000 psi. Featuring a single-piece trunnion style ball design and re-torqueable seats, these valves are ideal for severe service environments. With a variety of end connection options, including 2507 Super Duplex, these valves offer durability and flexibility for critical applications. The full port flow path minimizes pressure drop, while the low-friction stem seal enhances cycle life and reduces torque, ensuring reliable performance. Temperature-resistant and with multiple material options, these ball valves are designed to meet the rigorous demands of industrial operations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

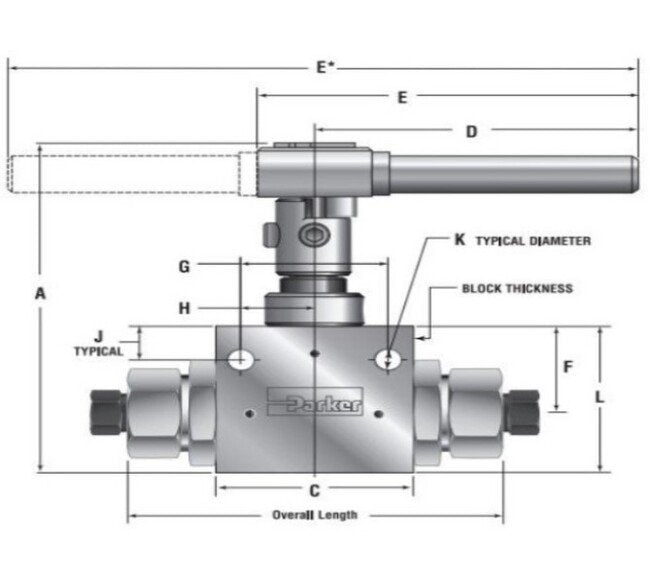

Dimensions A
10.13 in
Dimensions Block Thickness
3.00 in
Dimensions C
4.50 in
Dimensions Connection
1 MPI™
Dimensions Cv
21.00 in
Dimensions D
11.00 in
Dimensions E
22.00 in
Dimensions F
2.47 in
Dimensions G
3.25 in
Dimensions H
1.63 in
Dimensions J
.69 in
Dimensions K
.41 in
Dimensions L
4.50 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.69 in
Dimensions Orifice Size
3/4 in
Dimensions Overall Length
9.18 in
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
Specifications Repair Kits
R2B12S
