Premium MPI™ MAB Series 2 Way Ball Valves - Designed for durability, performance, and versatility in high-pressure shutoff applications.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
MPI™ MAB Series 2 Way Ball Valves - Parker Valves
$159.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series 2 Way Ball Valves - Parker Valves
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

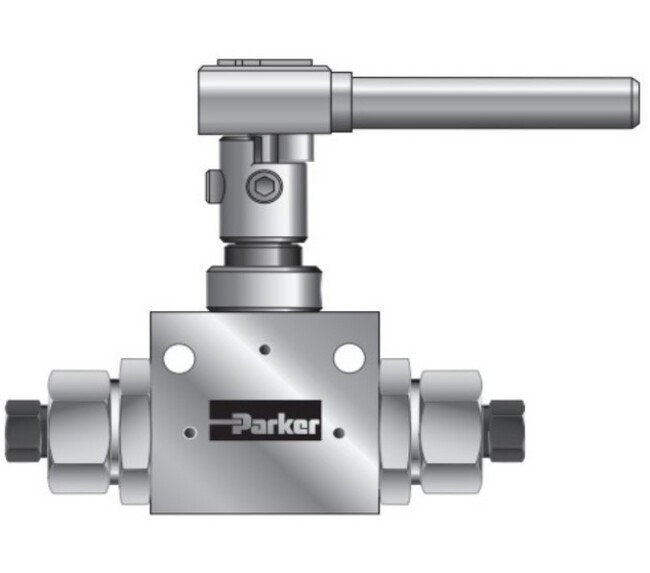

The MPI™ MAB Series 2 Way Ball Valves by Parker are expertly designed for manual, pneumatic, and electrically actuated applications, suitable for high-pressure media shutoff up to 15,000 psi. With a single-piece trunnion style ball, re-torqueable seats, and a versatile end connector design, these valves excel in severe service environments. Featuring a full port flow path, low-friction PTFE stem seal, and a wide temperature range, these valves ensure efficiency, durability, and reliable operation. The inclusion of Viton™ o-rings, one-piece ball/stem design, and 2507 Super Duplex material option further enhance performance and longevity, making them an ideal choice for demanding industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

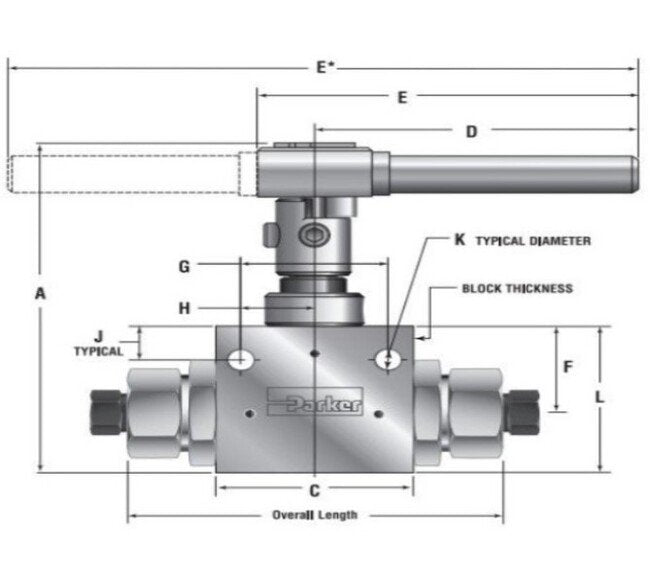

Dimensions A
4.33 in
Dimensions Block Thickness
1.00 in
Dimensions C
2.00 in
Dimensions Connection
1/2 MPI™
Dimensions Cv
1.51 in
Dimensions D
3.37 in
Dimensions E
3.83 in
Dimensions F
1.13 in
Dimensions G
1.50 in
Dimensions H
.75 in
Dimensions J
.44 in
Dimensions K
.28 in
Dimensions L
1.91 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.25 in
Dimensions Orifice Size
1/4 in
Dimensions Overall Length
5.34 in
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
Specifications Repair Kits
R2B4S-2507
