MPI™ MAB Series 2 Way Ball Valves - Severe Service
MPI™ MAB Series 2 Way Ball Valves - Severe Service
SKU:VAL-b4f9b8
MPI™ MAB Series 2 Way Ball Valves - High-performance, durable valves for severe service applications up to 15,000 psi.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
MPI™ MAB Series 2 Way Ball Valves - Severe Service
$499.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series 2 Way Ball Valves - Severe Service
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

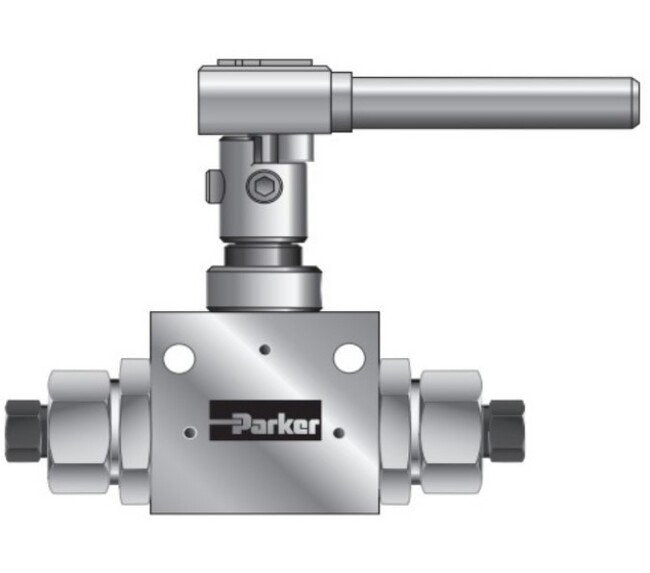

The MPI™ MAB Series 2 Way Ball Valves offer superior performance for quarter and half turn media shutoff or switching applications up to 15,000 psi. Featuring a one-piece trunnion style ball/stem design, these valves are perfect for severe service conditions. With re-torqueable PEEK™ Seat Glands and full port flow path, they ensure reliability and minimal pressure drop. The low-friction stem seal enhances cycle life while operating with reduced torque. These valves meet rigorous industry standards and are designed for durability and high-performance applications.
Ready to Grow Without Cash Flow Constraints?

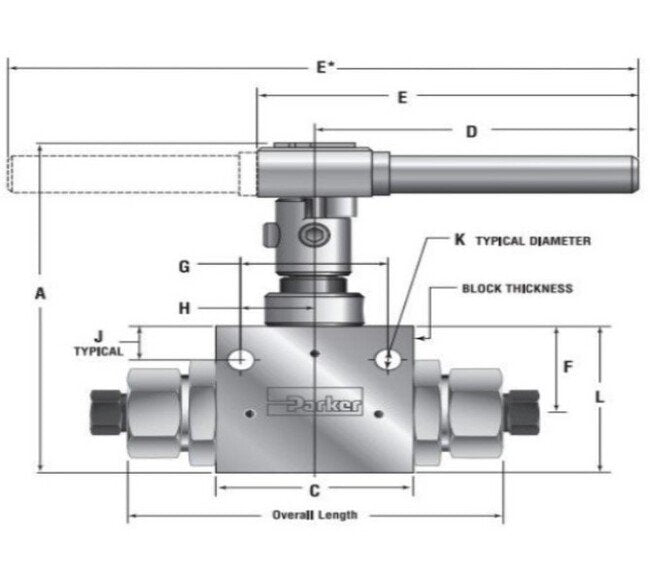

Product Specifications
Dimensions A
10.13 in
Dimensions Block Thickness
3.00 in
Dimensions C
4.50 in
Dimensions Connection
3/4 MPI™
Dimensions Cv
11.80 in
Dimensions D
11.00 in
Dimensions E
22.00 in
Dimensions F
2.47 in
Dimensions G
3.25 in
Dimensions H
1.63 in
Dimensions J
.69 in
Dimensions K
.41 in
Dimensions L
4.50 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.53 in
Dimensions Orifice Size
3/4 in
Dimensions Overall Length
9.18 in
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
Specifications Repair Kits
R2B12S-2507
