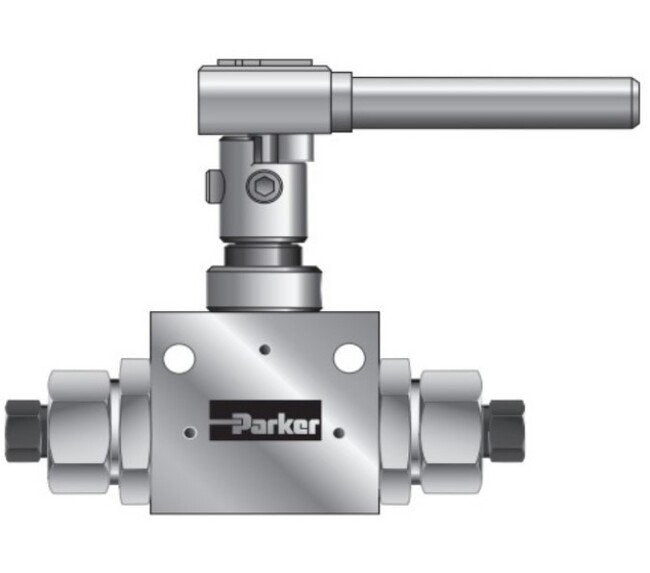

MPI™ MAB Series 2 Way Ball Valves - Severe Service Applications
MPI™ MAB Series 2 Way Ball Valves - Severe Service Applications
SKU:VAL-134612
Discover MPI™ MAB Series 2 Way Ball Valves - engineered for durability and reliability in high-pressure applications. Optimize performance with advanced features.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
MPI™ MAB Series 2 Way Ball Valves - Severe Service Applications
$189.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series 2 Way Ball Valves - Severe Service Applications
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series 2 Way Ball Valves by Parker are expertly crafted for quarter and half-turn media shutoff or switching applications up to 15,000 psi. Featuring a robust single-piece trunnion style ball design and re-torqueable seats, these valves excel in severe service environments. With diverse end connection options and a full port flow path that minimizes pressure drop, these valves ensure optimum performance and durability. Enjoy the benefits of low-friction, pressure-assisted stem seals, a wide temperature range, and the option for 2507 Annealed Super Duplex material. Ideal for a range of applications, these valves are a cornerstone of reliability and efficiency.
Ready to Grow Without Cash Flow Constraints?

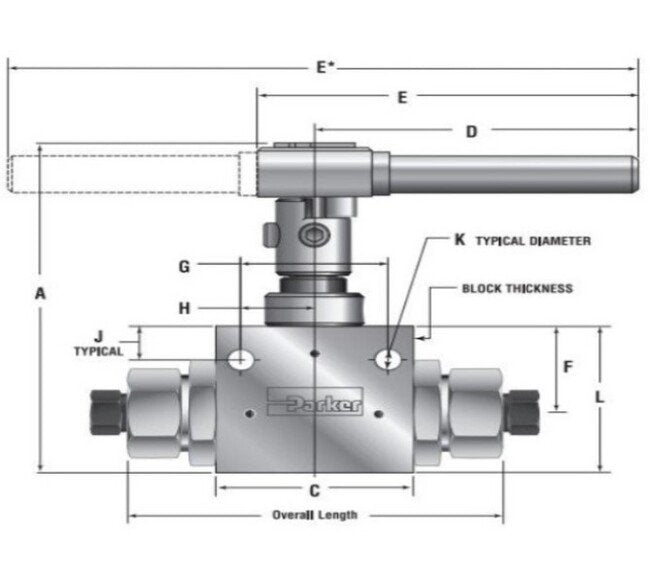

Product Specifications
Dimensions A
4.99 in
Dimensions Block Thickness
1.38 in
Dimensions C
3.00 in
Dimensions Connection
1/2 MPI™
Dimensions Cv
3.24 in
Dimensions D
4.99 in
Dimensions E
5.45 in
Dimensions F
1.38 in
Dimensions G
2.00 in
Dimensions H
1.00 in
Dimensions J
.41 in
Dimensions K
.28 in
Dimensions L
2.50 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.31 in
Dimensions Orifice Size
3/8 in
Dimensions Overall Length
6.27 in
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
Specifications Repair Kits
R2B6S-2507
