MPI™ MAB Series 3-Way Ball Valves - 10,000 PSI, 90o Diverter
MPI™ MAB Series 3-Way Ball Valves - 10,000 PSI, 90o Diverter
SKU:VAL-cfc78c
Reliable MPI™ MAB Series 3-Way Ball Valves - designed for 10,000 psi applications, with durable construction and exceptional performance.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
MPI™ MAB Series 3-Way Ball Valves - 10,000 PSI, 90o Diverter
$399.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series 3-Way Ball Valves - 10,000 PSI, 90o Diverter
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

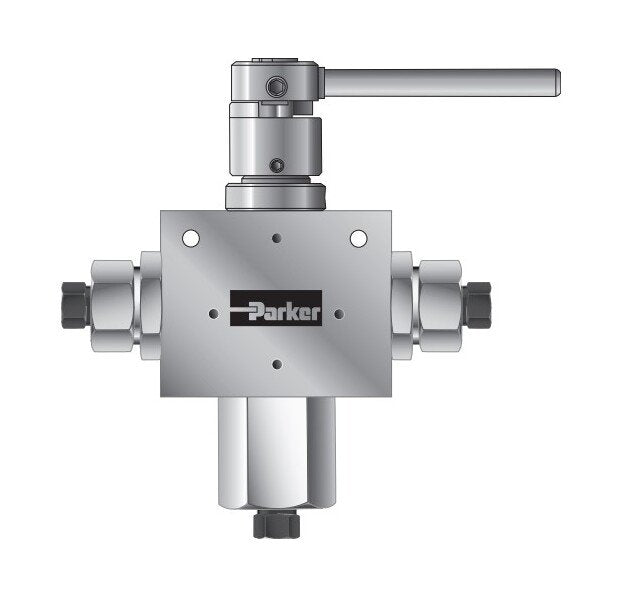

The MPI™ MAB Series 3-Way Ball Valves are engineered for precision shut-off or switching applications up to 10,000 psi. Featuring a robust one-piece trunnion ball design and re-torqueable PEEK™ seat glands, these valves excel in severe service conditions. With a full-port flow path to minimize pressure drop and low-friction stem seals for extended cycle life, these valves offer unparalleled reliability. Operating within a temperature range of 0°F to 400°F (standard), expandable to 500°F, they are designed for durability. Made with CW 316 Stainless Steel as standard (option for 2507 Annealed Super Duplex), Viton™ Fluoroelastomer/FKM o-rings provide exceptional seal performance. These valves are available in both 2-way Bi-Directional and 3-Way Switching or Diverter Styles.

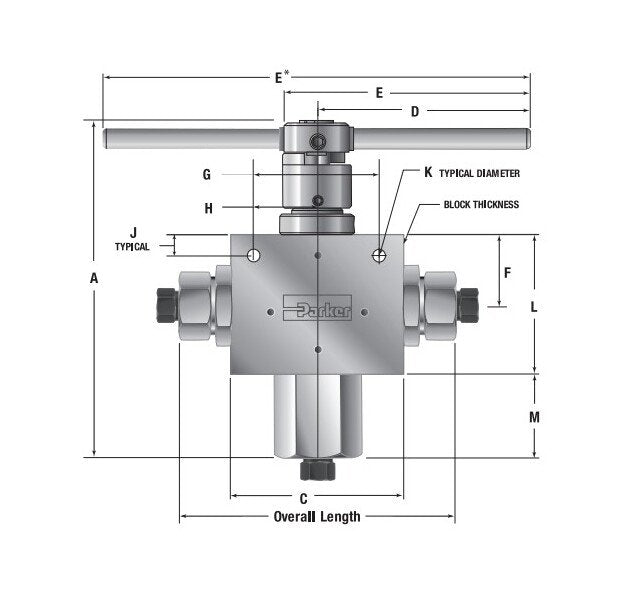

Product Specifications
Dimensions A
8.35 in
Dimensions Block Thickness
1.75 in
Dimensions C
4.13 in
Dimensions Connection
3/4 MPI™
Dimensions Cv
4.40 in
Dimensions D
5.09 in
Dimensions E
10.18 in
Dimensions F
1.66 in
Dimensions G
3.00 in
Dimensions H
1.50 in
Dimensions J
.50 in
Dimensions K
.28 in
Dimensions L
3.34 in
Dimensions M
2.22 in
Dimensions Mawp
10000 psi
Dimensions Minimum Valve Orifice
.50 in
Dimensions Orifice Size
1/2 in
Dimensions Overall Length
10.85 in
Dimensions Type
90o Diverter
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
Specifications Repair Kits
R3BD8S-2507
