MPI™ MAB Series 3 Way Ball Valves - 15000 psi
MPI™ MAB Series 3 Way Ball Valves - 15000 psi
SKU:VAL-5fd2cb
High-performance MPI™ MAB Series 3 Way Ball Valves for media shutoff up to 15,000 psi. Trunnion style ball design, multiple material options, and low torque operation.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
MPI™ MAB Series 3 Way Ball Valves - 15000 psi
$189.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series 3 Way Ball Valves - 15000 psi
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

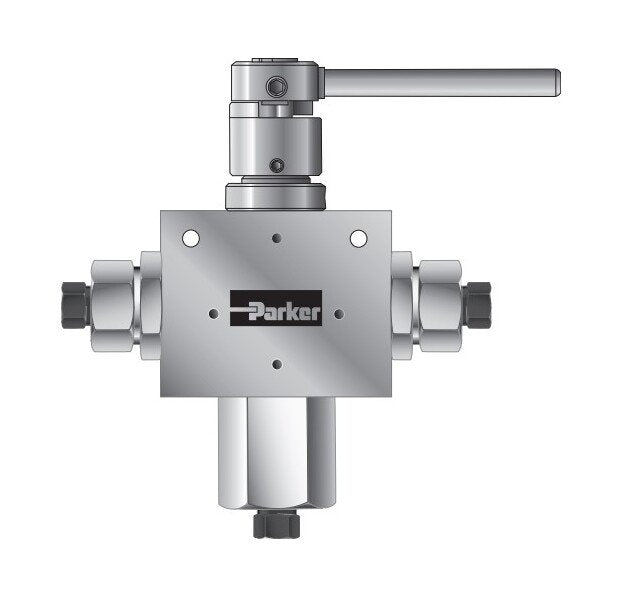

The MPI™ MAB Series 3 Way Ball Valves are precision-engineered for manual, pneumatic, or electric actuation in quarter and half-turn media shutoff applications up to 15,000 psi. Featuring a single-piece trunnion style ball design with re-torqueable seats, these valves offer exceptional performance in severe service environments. With options for various end connections and materials including 316 Stainless Steel and 2507 Super Duplex, these valves ensure reliable operation across a wide temperature range. The innovative design eliminates shear failure, reduces side loading, and minimizes pressure drop, making them ideal for industrial applications that demand efficiency, durability, and safety.

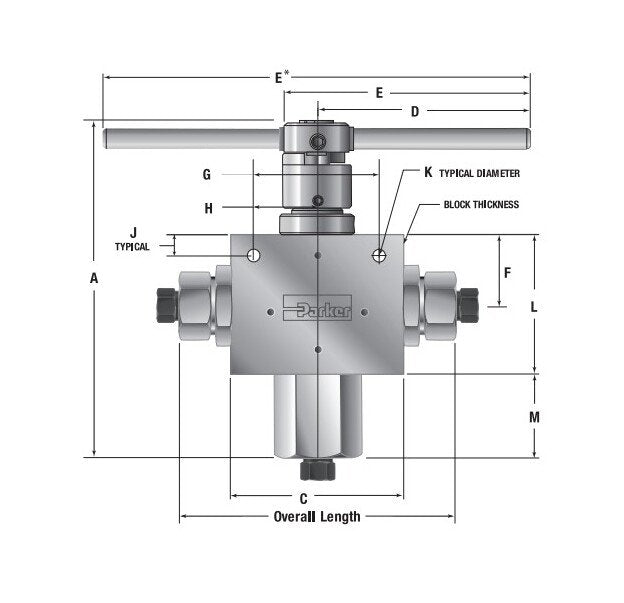

Product Specifications
Dimensions A
5.66 in
Dimensions Block Thickness
1.00 in
Dimensions C
2.50 in
Dimensions Connection
1/4 MPI™
Dimensions Cv
.33 in
Dimensions D
3.37 in
Dimensions E
3.90 in
Dimensions F
1.12 in
Dimensions G
1.50 in
Dimensions H
.75 in
Dimensions J
.43 in
Dimensions K
.28 in
Dimensions L
2.26 in
Dimensions M
.97 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.13 in
Dimensions Orifice Size
3/16 in
Dimensions Overall Length
4.72 in
Dimensions Type
180o Selector
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
Specifications Repair Kits
R3B3S-2507
