MPI™ MAB Series 3 Way Ball Valves - 15000 psi
MPI™ MAB Series 3 Way Ball Valves - 15000 psi
SKU:VAL-943da1
Reliable MPI™ MAB Series 3 Way Ball Valves for precise shutoff or switching applications up to 15,000 psi. Ideal for severe service, with durable design features.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
MPI™ MAB Series 3 Way Ball Valves - 15000 psi
$299.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series 3 Way Ball Valves - 15000 psi
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

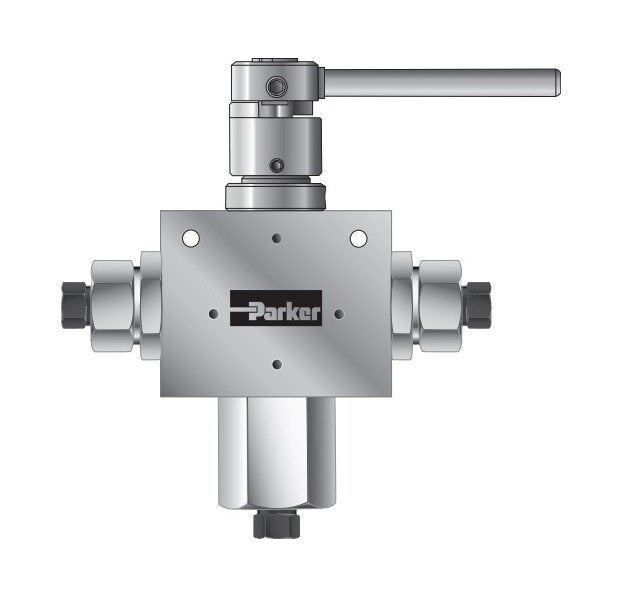

The MPI™ MAB Series 3 Way Ball Valves are engineered for precision and durability, offering manual, pneumatic, and electric actuation options for quarter and half turn media shutoff or switching applications. With a maximum working pressure of 15,000 psi, these valves feature a single-piece trunnion style ball design, re-torqueable seats, and versatile end connector design suitable for severe service applications. The full-port flow path minimizes pressure drop, while the low-friction stem seal enhances cycle life. Operating within a temperature range from 0°F to 400°F, these valves are a reliable choice for critical applications.
Product Specifications

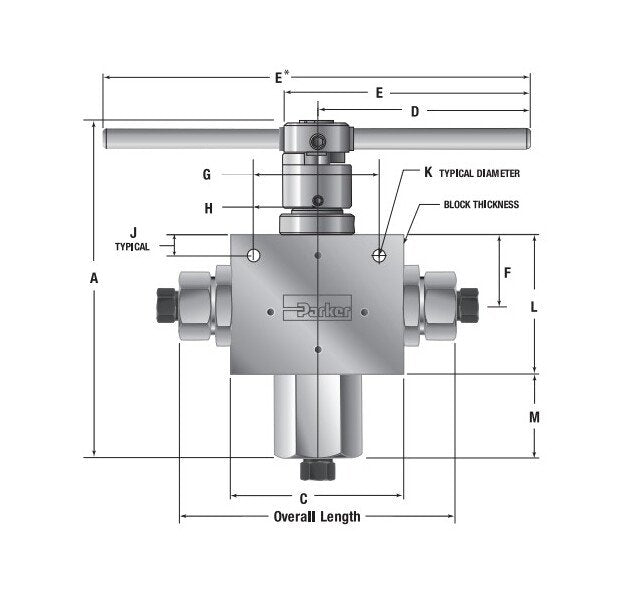

Dimensions A
5.66 in
Dimensions Block Thickness
1.00 in
Dimensions C
2.50 in
Dimensions Connection
3/8 MPI™
Dimensions Cv
.50 in
Dimensions D
3.37 in
Dimensions E
3.90 in
Dimensions F
1.12 in
Dimensions G
1.50 in
Dimensions H
.75 in
Dimensions J
.43 in
Dimensions K
.28 in
Dimensions L
2.26 in
Dimensions M
.97 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.19 in
Dimensions Orifice Size
3/16 in
Dimensions Overall Length
4.72 in
Dimensions Type
90º Diverter
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
Specifications Repair Kits
R3BD3S
