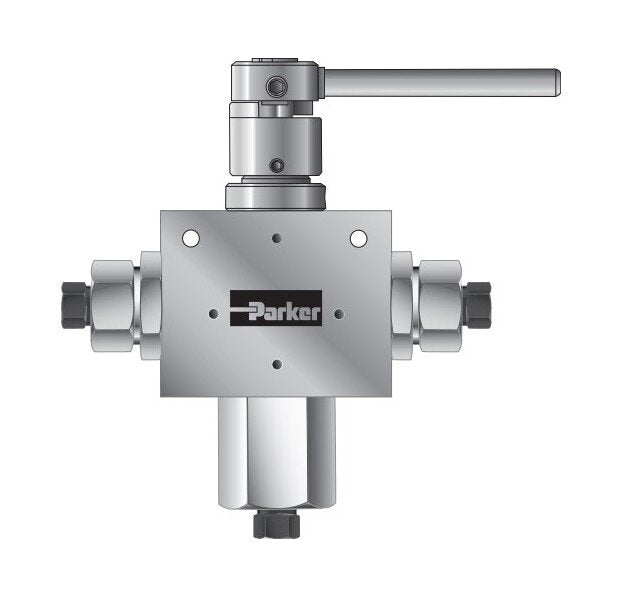

The MPI™ MAB Series 3 Way Ball Valves offer reliable quarter and half turn media shutoff or switching up to 15,000 psi, making them ideal for severe service applications. Featuring a single-piece trunnion style ball design with re-torqueable seats, these valves minimize shear failure and reduce side loading. The valves boast a full port flow path for minimal pressure drop, low friction stem seal for increased cycle life, and a temperature range from 0°F to 400°F. With 2-way Bi-Directional and 3-Way styles available, these valves provide versatility, durability, and efficiency for diverse industrial applications.
Product Specifications

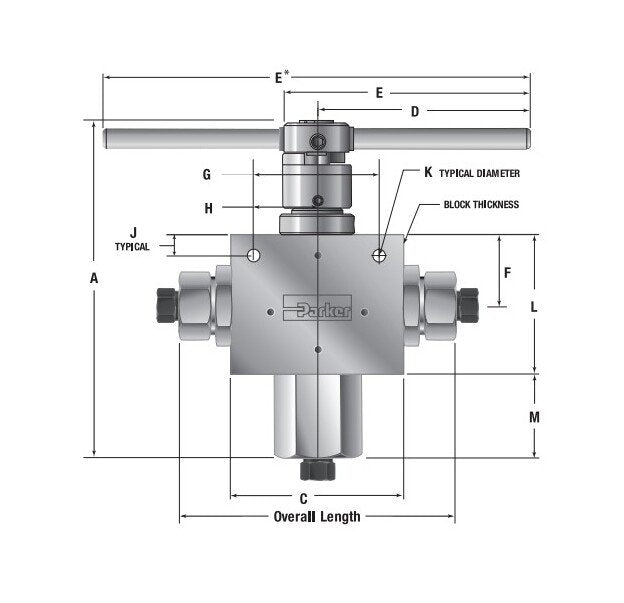

Dimensions A
5.66 in
Dimensions Block Thickness
1.00 in
Dimensions C
2.50 in
Dimensions Connection
3/8 MPI™
Dimensions Cv
.50 in
Dimensions D
3.37 in
Dimensions E
3.90 in
Dimensions F
1.12 in
Dimensions G
1.50 in
Dimensions H
.75 in
Dimensions J
.43 in
Dimensions K
.28 in
Dimensions L
2.26 in
Dimensions M
.97 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.19 in
Dimensions Orifice Size
3/16 in
Dimensions Overall Length
4.72 in
Dimensions Type
180o Selector
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
Specifications Repair Kits
R3B3S-2507
