MPI™ MAB Series 3-Way Ball Valves - High-Pressure Selector Valves
MPI™ MAB Series 3-Way Ball Valves - High-Pressure Selector Valves
SKU:VAL-296ec0
High-pressure MPI™ MAB 3-Way Ball Valves for precision media control at up to 15,000 psi. Versatile, reliable, and compliant with industry standards.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
MPI™ MAB Series 3-Way Ball Valves - High-Pressure Selector Valves
$299.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series 3-Way Ball Valves - High-Pressure Selector Valves
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

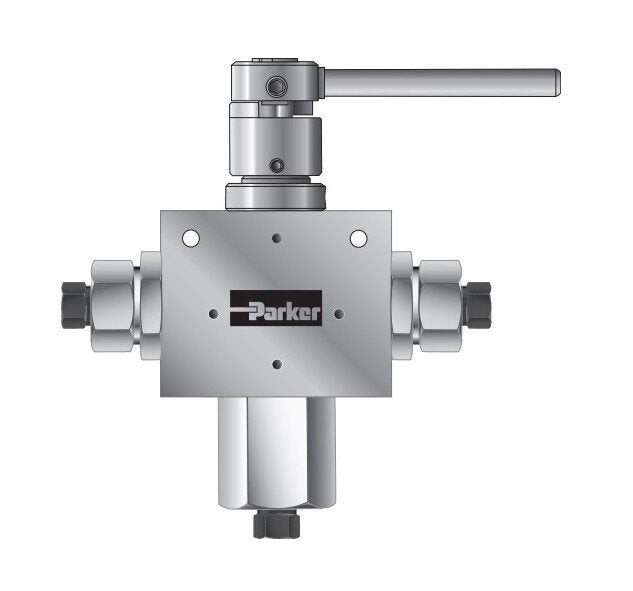

The MPI™ MAB Series 3-Way Ball Valves are engineered for precision quarter and half-turn media shutoff or switching applications at pressures up to 15,000 psi. Featuring a single-piece trunnion style ball design and re-torqueable seats, these valves excel in severe service environments. With options for manual, pneumatic, or electric actuation, the MAB Series provides versatility and reliability. The valves are designed with Viton™ Fluoroelastomer/FKM o-rings, reducing maintenance needs and offering temperature flexibility from 0°F to 400°F, extendable to 500°F. Compliant with industry standards, these valves ensure optimal performance and durability in demanding applications.

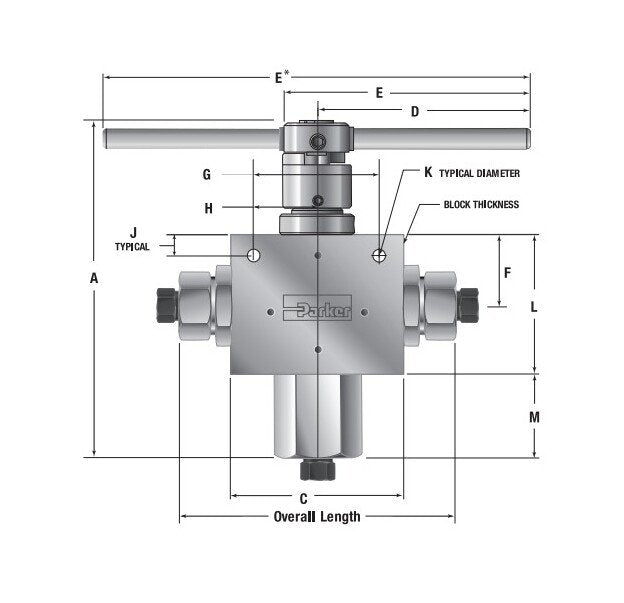

Product Specifications
Dimensions A
6.90 in
Dimensions Block Thickness
1.38 in
Dimensions C
3.00 in
Dimensions Connection
1/2 MPI™
Dimensions Cv
2.00 in
Dimensions D
4.99 in
Dimensions E
5.52 in
Dimensions F
1.38 in
Dimensions G
2.00 in
Dimensions H
1.00 in
Dimensions J
.41 in
Dimensions K
.28 in
Dimensions L
2.88 in
Dimensions M
1.54 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.31 in
Dimensions Orifice Size
3/8 in
Dimensions Overall Length
6.28 in
Dimensions Type
180º Selector
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
Specifications Repair Kits
R3B6S
