The MPI™ MAB Series Double Block and Bleed Ball Valves are engineered for superior performance in demanding media shutoff applications up to 15,000 psi. Featuring a one-piece trunnion style ball/stem design and re-torqueable PEEK™ seat glands, these valves eliminate shear failure and enhance longevity. With options for 2507 Super Duplex material, full port flow path design, low friction stem seals, and Viton™ Fluoroelastomer o-rings, they ensure minimal pressure drop and extended cycle life. Suitable for temperatures ranging from 0°F to 500°F, these valves offer bi-directional and 3-way configurations for versatile use, making them ideal for critical service conditions.
Product Specifications

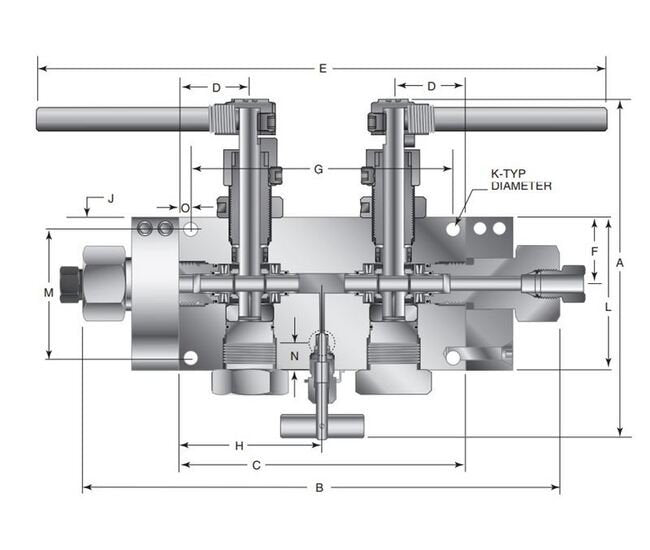

Dimensions A
7.14 in
Dimensions B
11.17 in
Dimensions Block Thickness
1.75 in
Dimensions C
6.00 in
Dimensions Connection
9/16 MPI™
Dimensions Cv
2.40
Dimensions D
1.50 in
Dimensions E
12.98 in
Dimensions F
1.38 in
Dimensions G
5.00 in
Dimensions H
3.00 in
Dimensions J
.41 in
Dimensions K
.28 in
Dimensions L
3.19 in
Dimensions M
2.38 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.32 in
Dimensions N Vent Connection
.65 in
Dimensions O
.50 in
Dimensions Orifice Size
3/8 in
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
