MPI™ MAB Series Double Block and Bleed Ball Valves
MPI™ MAB Series Double Block and Bleed Ball Valves
SKU:VAL-2d8a3e
Engineered for high-pressure media applications, MPI™ MAB Series Valves ensure superior performance and durability.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
MPI™ MAB Series Double Block and Bleed Ball Valves
$599.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Double Block and Bleed Ball Valves
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

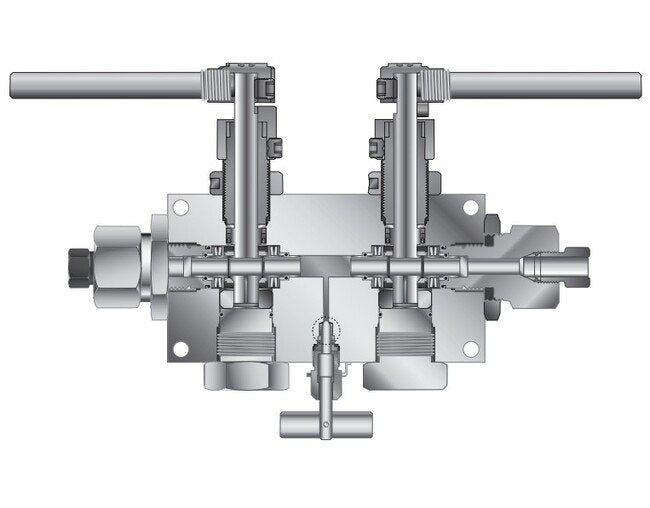

The MPI™ MAB Series Double Block and Bleed Ball Valves by Parker are engineered to deliver superior performance in quarter and half-turn media shutoff or switching applications at pressures up to 15,000 psi. Featuring a single-piece trunnion style ball design and re-torqueable seats, these valves are ideal for severe service applications. The valves boast a full port flow path to minimize pressure drop, a low-friction PTFE stem seal for increased cycle life, and a wide temperature range of 0°F to 400°F. With options like 2507 Super Duplex material and Viton™ Fluoroelastomer o-rings, these valves provide reliable and durable solutions for critical industrial operations.
Product Specifications

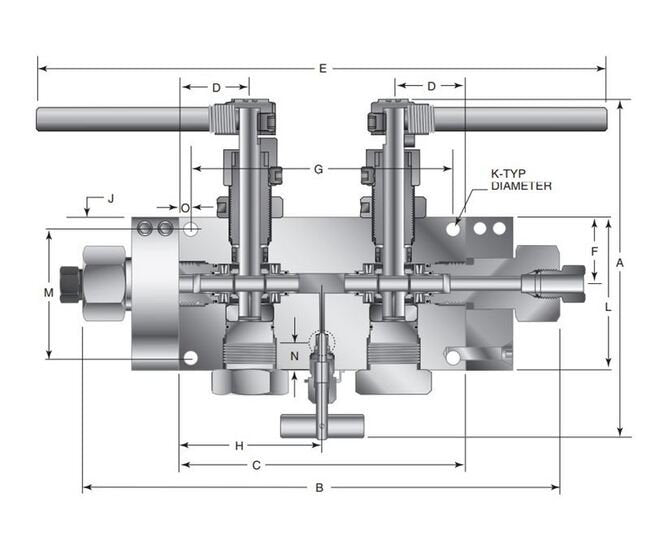

Dimensions A
7.14 in
Dimensions B
11.17 in
Dimensions Block Thickness
1.75 in
Dimensions C
6.00 in
Dimensions Connection
1/2 MPI™
Dimensions Cv
2.10
Dimensions D
1.50 in
Dimensions E
12.98 in
Dimensions F
1.38 in
Dimensions G
5.00 in
Dimensions H
3.00 in
Dimensions J
.41 in
Dimensions K
.28 in
Dimensions L
3.19 in
Dimensions M
2.38 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.31 in
Dimensions N Vent Connection
.65 in
Dimensions O
.50 in
Dimensions Orifice Size
3/8 in
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
