MPI™ MAB Series Double Block and Bleed Ball Valves
MPI™ MAB Series Double Block and Bleed Ball Valves
SKU:VAL-147a13
High-performance double block and bleed ball valves for media shutoff or switching with 15000 psi MAWP. Ideal for severe service applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
MPI™ MAB Series Double Block and Bleed Ball Valves
$349.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Double Block and Bleed Ball Valves
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

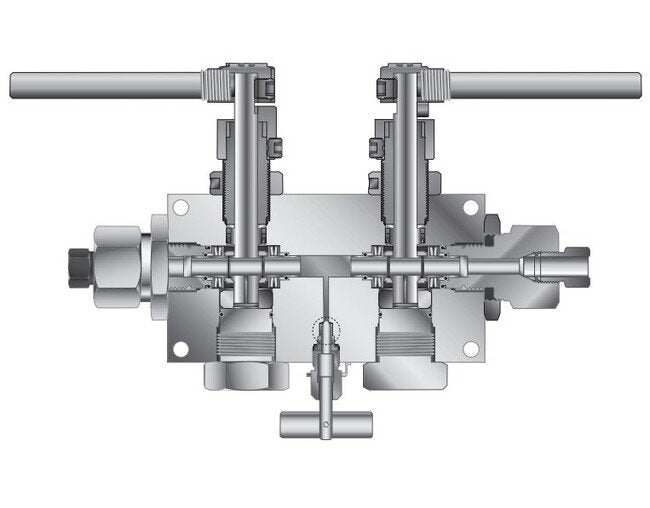

The MPI™ MAB Series Double Block and Bleed Ball Valves by Parker are expertly designed for quarter and half turn media shutoff or switching applications, with a MAWP of 15000 psi. Featuring a one-piece trunnion style ball/stem design, re-torqueable PEEK™ seat glands, and low friction stem seals for enhanced durability and performance. These valves offer a full flow path, pressure assisted seals, and a wide temperature range, making them ideal for severe service environments. With compliance to industry standards and a variety of end connections, the MPI™ MAB Series ensures reliable and efficient operation for institutional applications.
Product Specifications

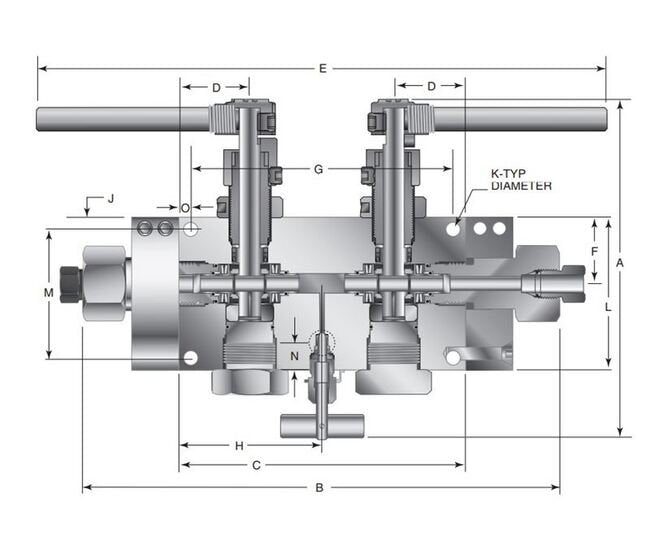

Dimensions A
7.14 in
Dimensions B
11.17 in
Dimensions Block Thickness
1.75 in
Dimensions C
6.00 in
Dimensions Connection
1/4 MPI™
Dimensions Cv
.34
Dimensions D
1.50 in
Dimensions E
12.98 in
Dimensions F
1.38 in
Dimensions G
5.00 in
Dimensions H
3.00 in
Dimensions J
.41 in
Dimensions K
.28 in
Dimensions L
3.19 in
Dimensions M
2.38 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.13 in
Dimensions N Vent Connection
.65 in
Dimensions O
.50 in
Dimensions Orifice Size
3/8 in
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
