The MPI™ MAB Series Double Block and Bleed Ball Valves by Parker are expertly designed for quarter and half turn media shutoff or switching applications, boasting a robust construction capable of handling pressures up to 15,000 psi. Featuring a one-piece trunnion style ball/stem design that eliminates shear failure and offers a full port flow path for minimal pressure drop, these valves are ideal for severe service applications. With re-torqueable PEEK™ Seat Glands, low-friction stem seals, and a wide temperature range, these valves ensure longevity, reliability, and efficient operation. Viton™ Fluoroelastomer/FKM o-rings and CW 316 Stainless Steel construction further enhance the performance and durability of these valves.
Product Specifications

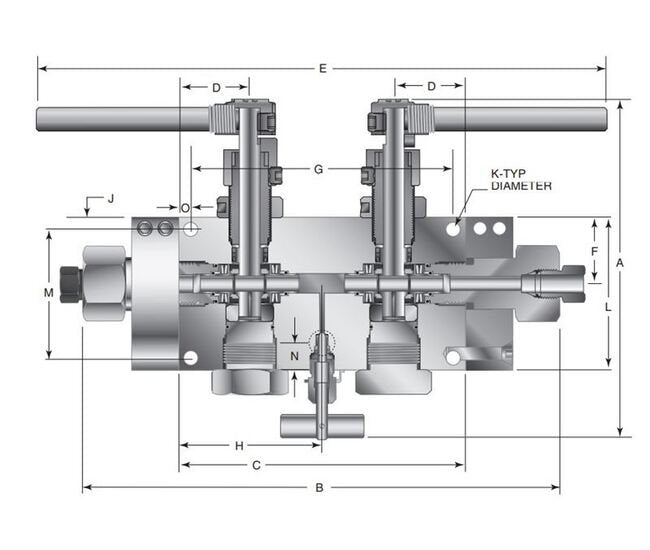

Dimensions A
13.02 in
Dimensions B
15.40 in
Dimensions Block Thickness
3.00 in
Dimensions C
10.50 in
Dimensions Connection
1 MPI™
Dimensions Cv
8.10
Dimensions D
2.66 in
Dimensions E
27.45 in
Dimensions F
2.53 in
Dimensions G
8.69 in
Dimensions H
5.25 in
Dimensions J
.72 in
Dimensions K
.41 in
Dimensions L
5.25 in
Dimensions M
3.81 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.63 in
Dimensions N Vent Connection
1.75 in
Dimensions O
.91 in
Dimensions Orifice Size
5/8 in
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
