MPI™ MAB Series Electric Actuator
MPI™ MAB Series Electric Actuator
SKU:VAL-a72609
Reliable MPI™ MAB Series Electric Actuator for precise valve control in various industrial applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
MPI™ MAB Series Electric Actuator
$299.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Electric Actuator
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series Electric Actuator is a reliable solution for automated valve operation, with a durable powder-coated aluminum housing and 120 VAC voltage compatibility. This actuator features a wide temperature operating range of 0oF to 160oF, making it suitable for various applications. It is CE & CSA approved for NEMA 4 and 4x, ensuring high standards of safety and performance. The actuator's interface with control systems enables seamless operation and monitoring, while options for ATEX Flameproof and CE marking provide flexibility for different industrial settings. Ideal for laboratories, chemical research facilities, and control panels, the MPI™ MAB Series Actuator guarantees efficient and precise valve control in demanding environments.

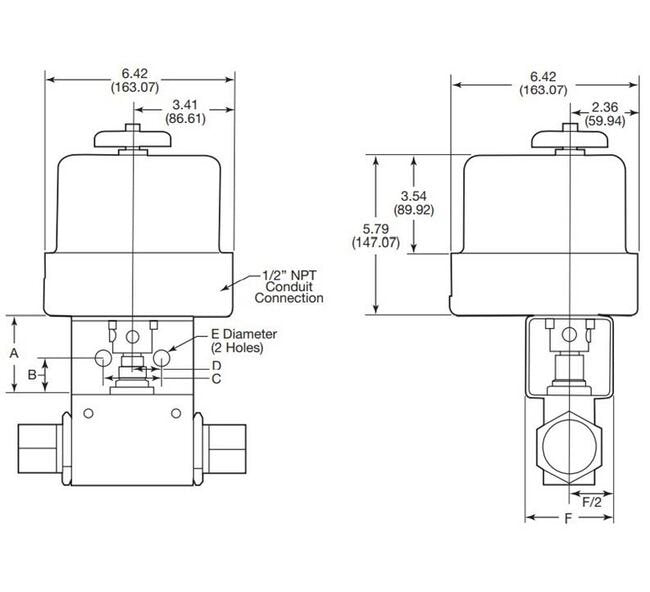

Product Specifications
Dimensions A
3.00 in
Dimensions Actuator Height
5.79 in
Dimensions Actuator Length
6.42 in
Dimensions Actuator Width
6.42 in
Dimensions B
1.50 in
Dimensions C
2.00 in
Dimensions D
1.00 in
Dimensions E
.53 in
Dimensions F
3.00 in
Dimensions No Load Time Openclose
5 sec
Dimensions Voltage
120 AC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
