MPI™ MAB Series Electric Actuator - 120 VAC
MPI™ MAB Series Electric Actuator - 120 VAC
SKU:VAL-c0ff58
Precision 120 VAC Electric Actuator for automated valve control in labs, chemical research, and more.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
MPI™ MAB Series Electric Actuator - 120 VAC
$349.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Electric Actuator - 120 VAC
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series Electric Actuator is designed for precision and reliability in valve automation. Operating from 0oF to 160oF, this 120 VAC actuator boasts a powder-coated aluminum housing that is CE and CSA approved for NEMA 4 and 4x ratings. With a 1/2" NPT female conduit connection and manual override feature, this actuator offers seamless integration with control systems for automated operation and monitoring. Suitable for a range of applications including laboratories, chemical research facilities, and more, it ensures efficient and safe valve control.
Product Specifications

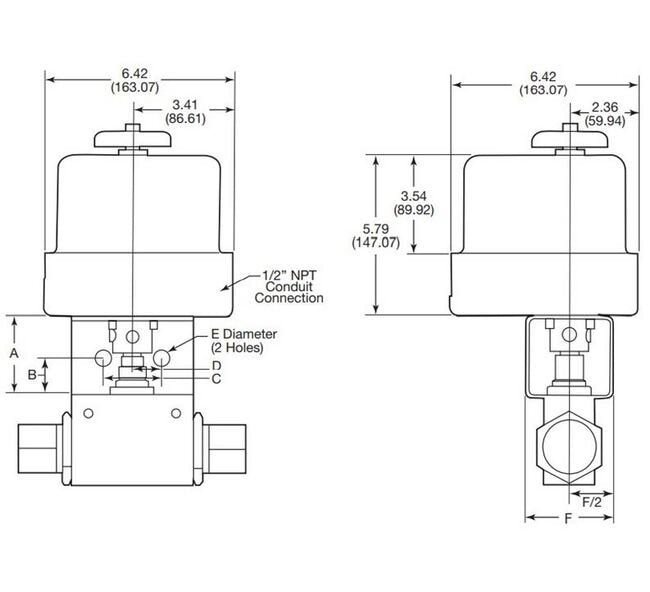

Dimensions A
3.00 in
Dimensions Actuator Height
5.79 in
Dimensions Actuator Length
6.42 in
Dimensions Actuator Width
6.42 in
Dimensions B
1.50 in
Dimensions C
2.00 in
Dimensions D
1.00 in
Dimensions E
.56 in
Dimensions F
3.00 in
Dimensions No Load Time Openclose
5 sec
Dimensions Voltage
120 AC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
