MPI™ MAB Series Electric Actuator 120VAC
MPI™ MAB Series Electric Actuator 120VAC
SKU:VAL-4886b6
Reliable MPI™ MAB Series 120VAC Electric Actuator for automated valve operation. CE & CSA approved, ideal for various applications.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
MPI™ MAB Series Electric Actuator 120VAC
$399.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Electric Actuator 120VAC
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series Electric Actuator 120VAC is a reliable solution for automated operation of ball valves in various applications. With a durable powder-coated aluminum housing, this actuator is designed to withstand temperatures from 0oF to 160oF and is CE & CSA approved for NEMA 4 and 4x standards. Featuring a manual override and 1/2" NPT female conduit connection, this actuator is designed for easy integration with control systems. Suitable for laboratories, chemical research facilities, and more, this actuator offers fast opening/closing times and compatibility with 120 & 220 VAC, 50/60 Hz standards.

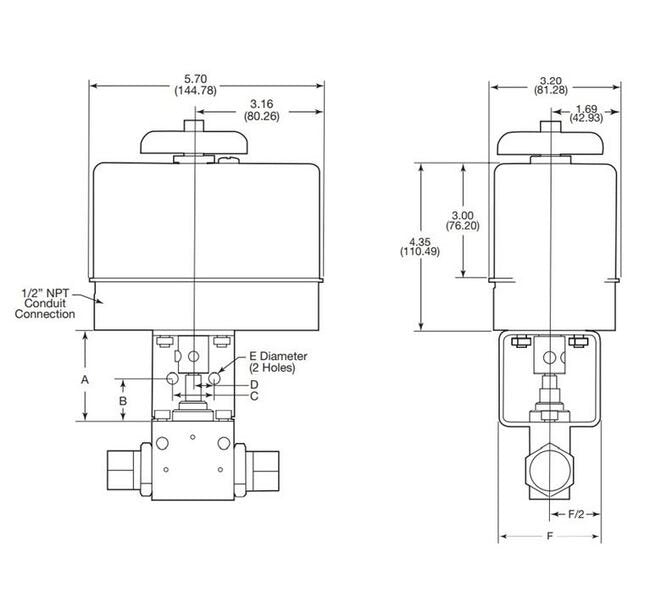

Product Specifications
Dimensions A
2.50 in
Dimensions Actuator Height
4.35 in
Dimensions Actuator Length
5.70 in
Dimensions Actuator Width
3.20 in
Dimensions B
1.25 in
Dimensions C
1.00 in
Dimensions D
.50 in
Dimensions E
.28 in
Dimensions F
2.50 in
Dimensions No Load Time Openclose
3 sec
Dimensions Voltage
120 AC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
