MPI™ MAB Series Electric Actuator - 120VAC
MPI™ MAB Series Electric Actuator - 120VAC
SKU:VAL-dea58a
MPI™ MAB Series Electric Actuator - 120VAC. Automated control with CE & CSA approval. Ideal for laboratories and chemical research.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
MPI™ MAB Series Electric Actuator - 120VAC
$299.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Electric Actuator - 120VAC
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series Electric Actuator - 120VAC is a reliable solution for automated valve operation, designed for a temperature range of 0oF to 160oF. With a powder-coated aluminum housing, this actuator is CE & CSA approved for NEMA 4 and 4x, ensuring durability and performance. It features a manual override, 1/2" NPT female conduit connection, and quick 5-second open/close time. Suitable for diverse applications including laboratories, pilot plants, and chemical research, this actuator provides interface capabilities with control systems and options for 24VDC, ATEX Flameproof, and Explosion Proof setups.
Product Specifications

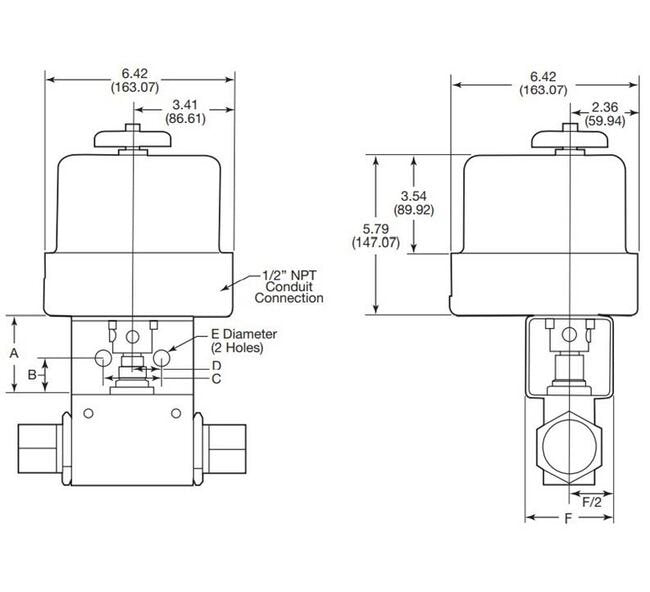

Dimensions A
3.00 in
Dimensions Actuator Height
5.79 in
Dimensions Actuator Length
6.42 in
Dimensions Actuator Width
6.42 in
Dimensions B
1.50 in
Dimensions C
2.00 in
Dimensions D
1.00 in
Dimensions E
.56 in
Dimensions F
3.00 in
Dimensions No Load Time Openclose
5 sec
Dimensions Voltage
120 AC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
