MPI™ MAB Series Electric Actuator - 120VAC
MPI™ MAB Series Electric Actuator - 120VAC
SKU:VAL-25cc85
Reliable MPI™ MAB Series Electric Actuator for precise valve control in extreme conditions. CE & CSA approved, explosion-proof design. Ideal for labs, pilot plants, & chemical research.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
MPI™ MAB Series Electric Actuator - 120VAC
$289.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Electric Actuator - 120VAC
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series Electric Actuator provides reliable and precise valve control in extreme temperatures. With a durable powder-coated aluminum housing, this actuator is CE & CSA approved, ensuring safety and quality. It features a 3/4" NPT female conduit connection and an explosion-proof enclosure, meeting ATEX and NEMA 7 Explosion Proof standards. Perfect for laboratories, pilot plants, and chemical research applications. Interface with control systems for automated operation and monitoring. Available in 120 & 220 VAC options with ATEX and CE certifications.
Product Specifications

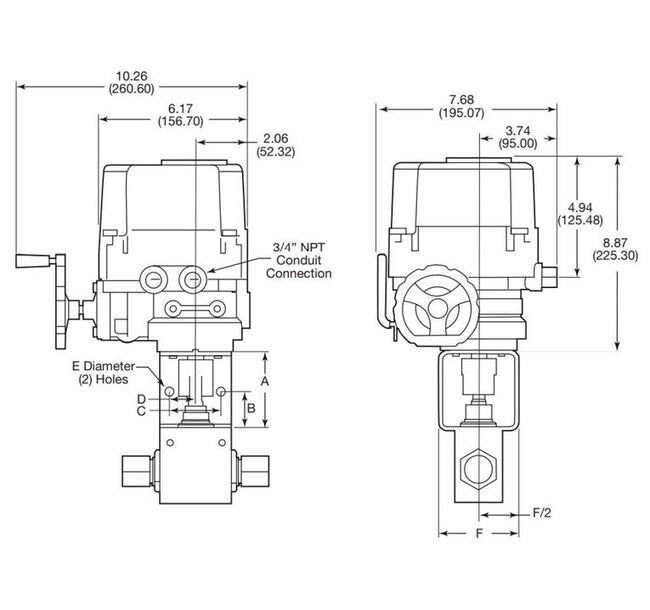

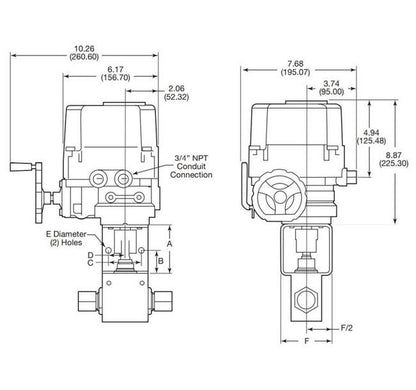

Dimensions A
3.00 in
Dimensions Actuator Height
8.87 in
Dimensions Actuator Length
10.26 in
Dimensions Actuator Width
7.68 in
Dimensions B
1.50 in
Dimensions C
1.50 in
Dimensions D
.75 in
Dimensions E
.34 in
Dimensions F
3.00 in
Dimensions No Load Time Openclose
7 sec
Dimensions Voltage
120 AC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
