MPI™ MAB Series Electric Actuator - 240 VAC
MPI™ MAB Series Electric Actuator - 240 VAC
SKU:VAL-fddbc2
Reliable MPI™ MAB Series Electric Actuator - 240 VAC for automated valve control in various applications. CE & CSA approved, with manual override.
Regular price
$279.99
Regular price
Sale price
$279.99
Unit price
per
Initiate Order
MPI™ MAB Series Electric Actuator - 240 VAC
$279.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Electric Actuator - 240 VAC
$279.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series Electric Actuator is a reliable solution for automated valve operation, featuring a durable powder-coated aluminum housing. With an operating temperature range from 0oF to 160oF (-18oC to 71oC), this actuator is suitable for a variety of applications, including laboratories, control panels, and chemical research facilities. CE and CSA approvals for NEMA 4 and 4x ensure compliance with industry standards, while the manual override offers added control. Interface seamlessly with control systems for automated monitoring, and choose from 120 & 220 VAC, 50/60 Hz, or 24VDC power options. ATEX Flameproof and Explosion Proof variants are available for hazardous environments, making this actuator a versatile choice for diverse settings.

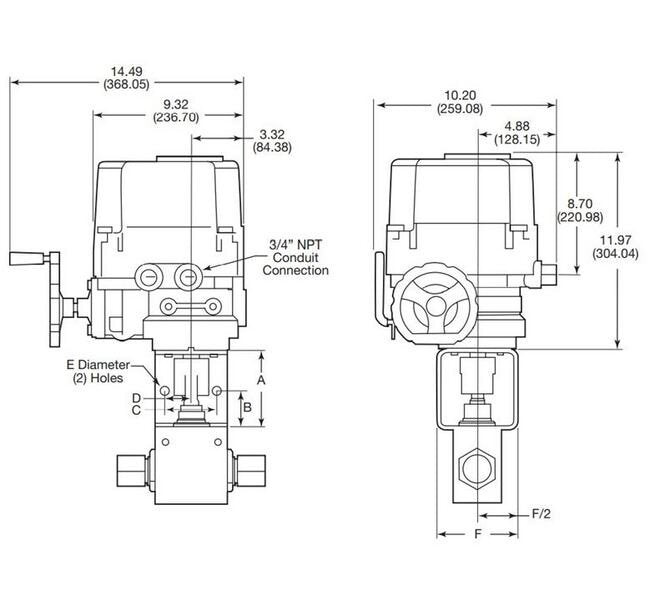

Product Specifications
Dimensions A
5.00 in
Dimensions Actuator Height
11.97 in
Dimensions Actuator Length
11.49 in
Dimensions Actuator Width
10.2 in
Dimensions B
2.50 in
Dimensions C
3.25 in
Dimensions D
1.63 in
Dimensions E
.53 in
Dimensions F
5.00 in
Dimensions No Load Time Openclose
10 sec
Dimensions Voltage
240 AC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
