MPI™ MAB Series Electric Actuator - 240 VAC
MPI™ MAB Series Electric Actuator - 240 VAC
SKU:VAL-c58d14
Enhance industrial automation with MPI™ MAB Series Electric Actuator - 240 VAC. CE & CSA approved, ideal for diverse applications.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
MPI™ MAB Series Electric Actuator - 240 VAC
$399.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Electric Actuator - 240 VAC
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your industrial automation with the MPI™ MAB Series Electric Actuator. Operating between -4oF to 158oF, this CE & CSA approved actuator features a powder-coated aluminum housing and an explosion-proof enclosure. With a 3/4" NPT female conduit connection and NEMA 7 Explosion Proof compliance, it ensures safety and reliability in various applications like laboratories, chemical research, and control panels. Interface seamlessly with control systems for automated operation and monitoring, making it a versatile and dependable choice for institutional settings.

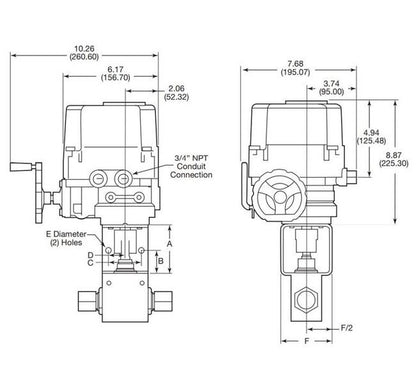

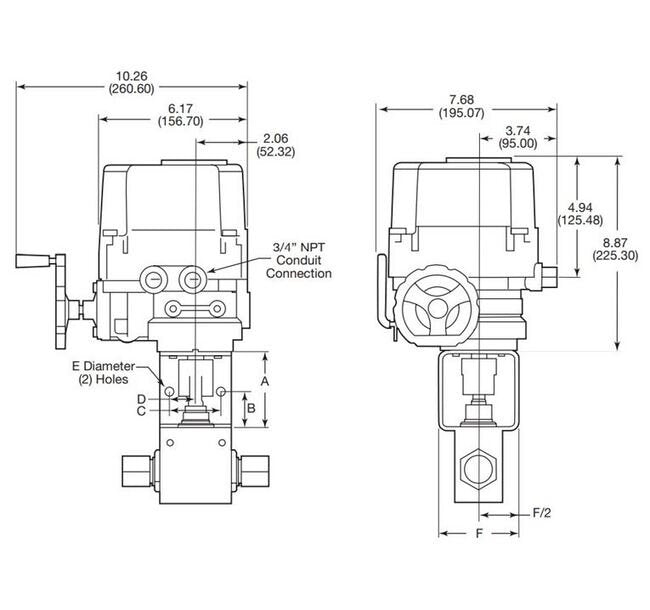

Product Specifications
Dimensions A
2.50 in
Dimensions Actuator Height
8.87 in
Dimensions Actuator Length
10.26 in
Dimensions Actuator Width
7.68 in
Dimensions B
1.25 in
Dimensions C
1.00 in
Dimensions D
.50 in
Dimensions E
.28 in
Dimensions F
2.50 in
Dimensions No Load Time Openclose
7 sec
Dimensions Voltage
240 AC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
