MPI™ MAB Series Electric Actuator - 240 VAC
MPI™ MAB Series Electric Actuator - 240 VAC
SKU:VAL-a32aa2
Reliable MPI™ MAB Series Electric Actuator - 240VAC for automated valve control in hazardous environments. CE & CSA approved.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
MPI™ MAB Series Electric Actuator - 240 VAC
$349.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Electric Actuator - 240 VAC
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series Electric Actuator is a robust solution for precise valve control. Operating between -4oF to 158oF, it features a powder-coated aluminum housing with CE & CSA approval. The explosion-proof enclosure and NEMA 7 compliance ensure safety in hazardous environments. With a 3/4" NPT female conduit connection and a watertight IP68 enclosure, this actuator is ideal for various applications, from laboratories to chemical research. The interface compatibility with control systems enables automated operation and monitoring, and options for different voltages and ATEX approvals cater to diverse needs.

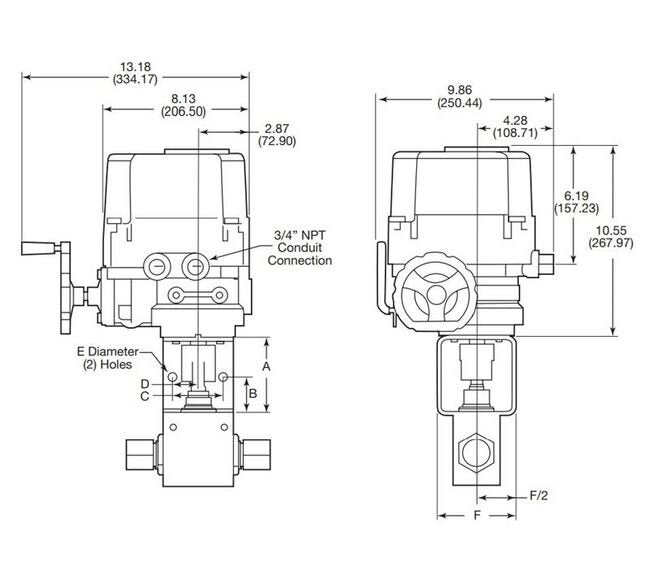

Product Specifications
Dimensions A
3.00 in
Dimensions Actuator Height
10.55 in
Dimensions Actuator Length
13.18 in
Dimensions Actuator Width
9.86 in
Dimensions B
1.50 in
Dimensions C
2.00 in
Dimensions D
1.00 in
Dimensions E
.53 in
Dimensions F
3.00 in
Dimensions No Load Time Openclose
7 sec
Dimensions Voltage
240 AC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
