MPI™ MAB Series Electric Actuator, 240VAC
MPI™ MAB Series Electric Actuator, 240VAC
SKU:VAL-73c9c8
High-performance MPI™ MAB Series Electric Actuator for automated valve operation in industrial settings.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
MPI™ MAB Series Electric Actuator, 240VAC
$289.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Electric Actuator, 240VAC
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series Electric Actuator is a robust solution for automated valve operation, offering reliable performance in a range of industrial applications. With an operating temperature of 0oF to 160oF (-18oC to 71oC), this CE & CSA approved actuator is housed in powder-coated aluminum for durability. Its 1/2" NPT female conduit connection and manual override provide flexibility and ease of use. The actuator features an interface for seamless integration with control systems, enabling automated operation and monitoring. Suitable for various industries including laboratories, pilot plants, and chemical research, this actuator meets stringent quality and performance standards.
Product Specifications

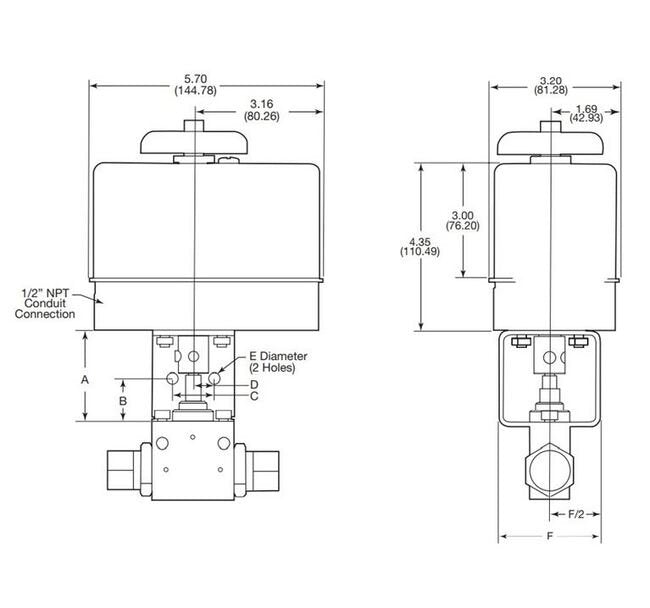

Dimensions A
3.00 in
Dimensions Actuator Height
4.35 in
Dimensions Actuator Length
5.70 in
Dimensions Actuator Width
3.20 in
Dimensions B
1.50 in
Dimensions C
1.50 in
Dimensions D
.75 in
Dimensions E
.34 in
Dimensions F
3.00 in
Dimensions No Load Time Openclose
7 sec
Dimensions Voltage
240 AC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
