MPI™ MAB Series Electric Actuator - 240VAC
$299.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Electric Actuator - 240VAC
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series Electric Actuator offers precision and reliability for valve automation. Operating temperature ranging from 0oF to 160oF, this actuator features a powder-coated aluminum housing for durability. With CE and CSA certifications for NEMA 4 and 4x, it ensures safety and compliance. The actuator is equipped with a manual override and a 1/2" NPT female conduit connection. Designed for seamless integration with control systems, it enables automated operation and monitoring. Suitable for various applications including laboratories, test stands, and chemical research facilities.
Product Specifications

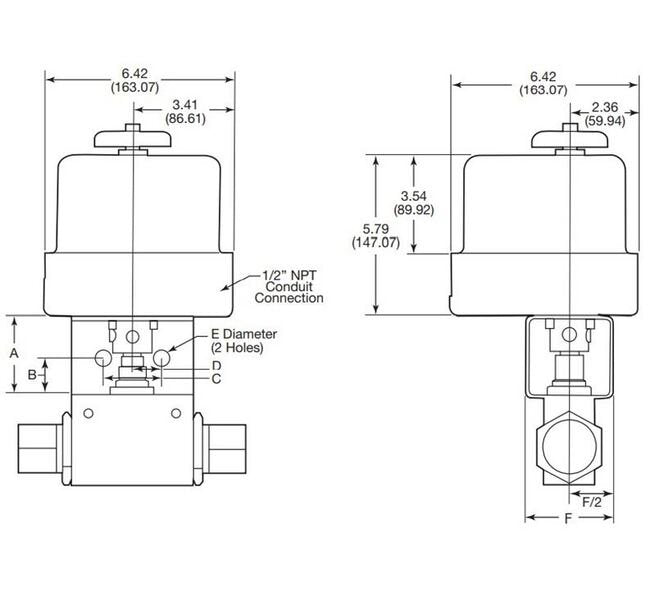

Dimensions A
3.00 in
Dimensions Actuator Height
5.79 in
Dimensions Actuator Length
6.42 in
Dimensions Actuator Width
6.42 in
Dimensions B
1.50 in
Dimensions C
2.00 in
Dimensions D
1.00 in
Dimensions E
.53 in
Dimensions F
3.00 in
Dimensions No Load Time Openclose
5 sec
Dimensions Voltage
240 AC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
