MPI™ MAB Series Electric Actuator - 240VAC
MPI™ MAB Series Electric Actuator - 240VAC
SKU:VAL-36ae44
Reliable MPI™ MAB Series Electric Actuator - 240VAC, CE & CSA approved for industrial use in hazardous environments.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
MPI™ MAB Series Electric Actuator - 240VAC
$299.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Electric Actuator - 240VAC
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series Electric Actuator offers precise and reliable operation for a wide range of industrial applications. With an operating temperature range of -4oF to 158oF and a sturdy powder-coated aluminum housing, this CE & CSA approved actuator ensures durability and safety. It features a 3/4" NPT female conduit connection and an explosion-proof enclosure II 2 G, EEx-d IIB T4, IP67, ATEX Approved design, making it suitable for hazardous environments. Compliant with NEMA 7 Explosion Proof and boasting a watertight enclosure (IP68 10M 72HR), this actuator is ideal for laboratories, pilot plants, chemical research, and various other industrial settings.
Product Specifications

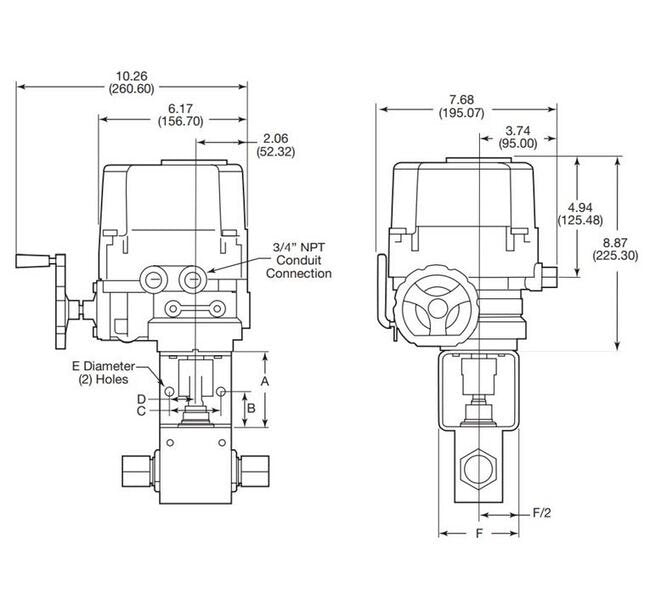

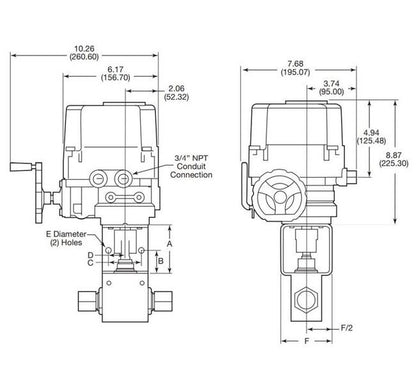

Dimensions A
3.00 in
Dimensions Actuator Height
8.87 in
Dimensions Actuator Length
10.26 in
Dimensions Actuator Width
7.68 in
Dimensions B
1.50 in
Dimensions C
1.00 in
Dimensions D
.50 in
Dimensions E
.28 in
Dimensions F
3.00 in
Dimensions No Load Time Openclose
7 sec
Dimensions Voltage
240 AC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
