MPI™ MAB Series Electric Actuator - 240VAC
MPI™ MAB Series Electric Actuator - 240VAC
SKU:VAL-196c9b
MPI™ MAB Series Electric Actuator - 240VAC for reliable and safe automated operation in various industries. ATEX approved and compliant with NEMA 7 standards.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
MPI™ MAB Series Electric Actuator - 240VAC
$299.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Electric Actuator - 240VAC
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series Electric Actuator is designed for optimal operation in a wide range of applications. With an operating temperature range of -4oF to 158oF, this actuator features a powder-coated aluminum housing, CE & CSA approval, 3/4" NPT female conduit connection, and an explosion-proof enclosure. Its ATEX approval and compliance with NEMA 7 Explosion Proof and Watertight enclosure standards ensure safety and reliability in hazardous environments. Suitable for laboratories, pilot plants, chemical research, and more, this actuator can be customized to meet specific requirements.
Product Specifications

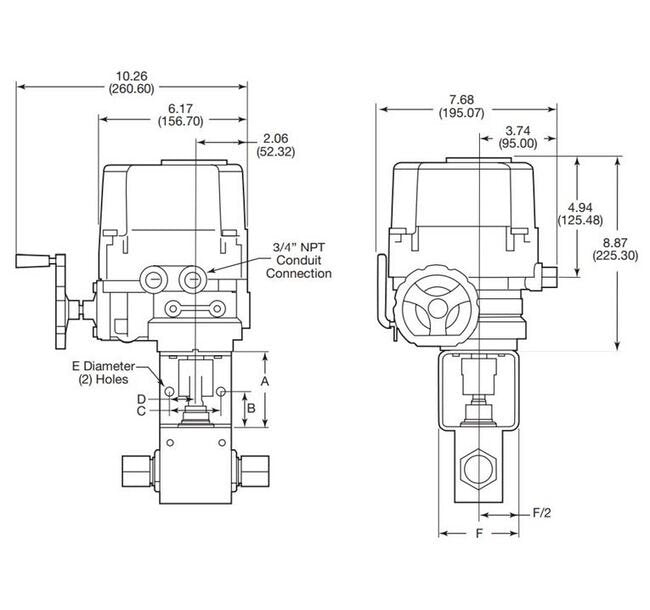

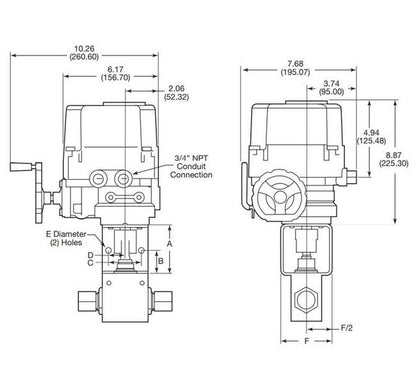

Dimensions A
3.00 in
Dimensions Actuator Height
8.87 in
Dimensions Actuator Length
10.26 in
Dimensions Actuator Width
7.68 in
Dimensions B
1.50 in
Dimensions C
1.50 in
Dimensions D
.75 in
Dimensions E
.34 in
Dimensions F
3.00 in
Dimensions No Load Time Openclose
7 sec
Dimensions Voltage
240 AC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
